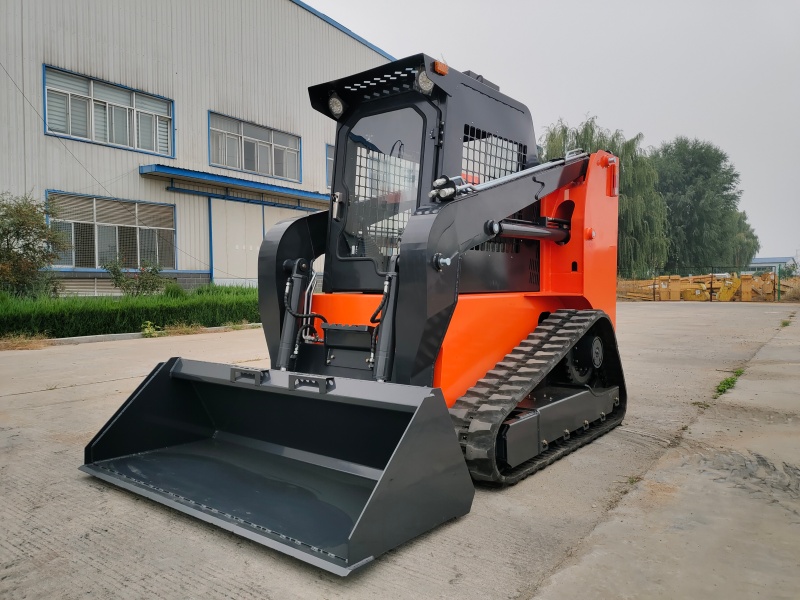

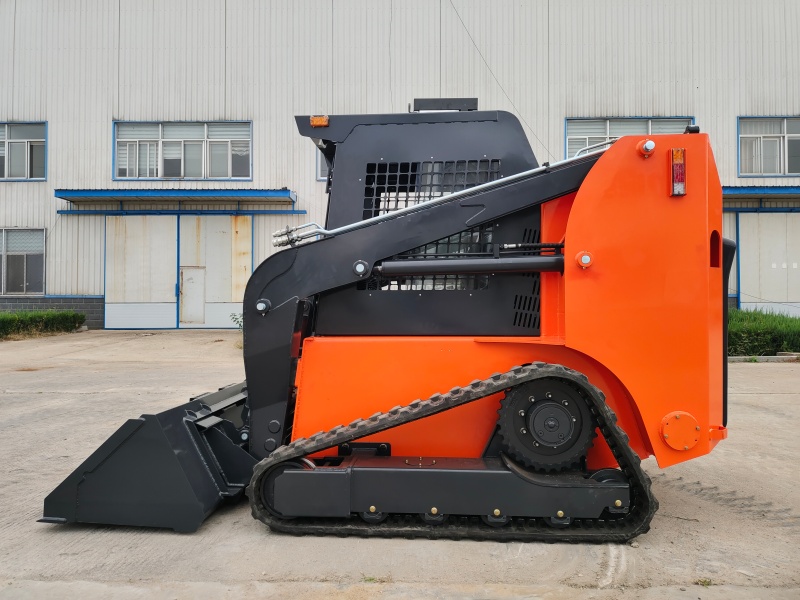

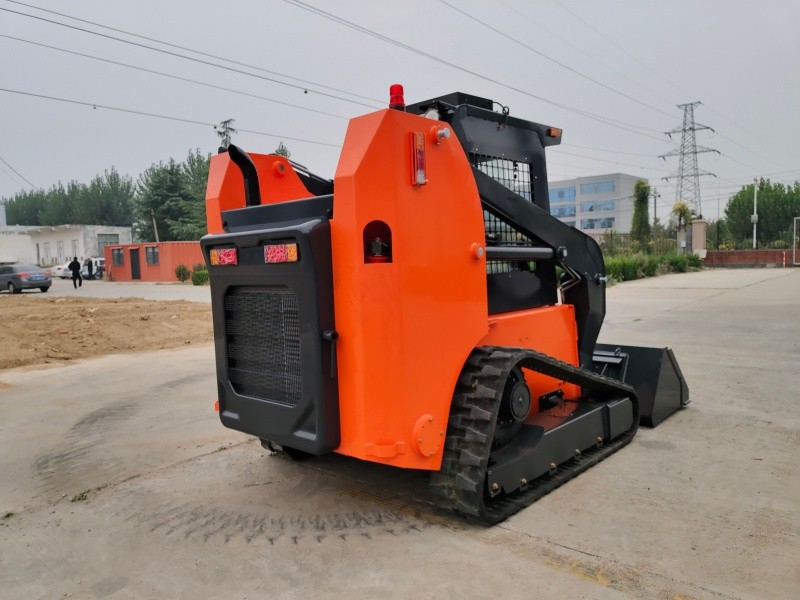

T65 Skid steer loaders

›

‹

›

Product Description

Designed to meet the requirements of a 1,000 kg rated load, the T65 establishes a robust platform that balances load-bearing capacity with optimal dimensions. With an operating weight of 4,200 kg, a 0.5 m³ bucket, and a maximum travel speed of 12/18 km/h, it is well-suited for alternating between loading tasks and on-site material transport. Key performance metrics—including a maximum traction force of ≥28.2 kN, a breakout force of ≥20 kN, and a 7-second boom lift time—highlight its powerful responsiveness during heavy-load operations. Furthermore, a maximum operating height of 3,871 mm, a dump height of 2,230 mm, an overall length (with bucket) of 3,500 mm, and a standard bucket width of 1,830 mm make it ideal for applications requiring specific operating heights and material handling capabilities.


T65 Skid steer loaders

T65 Skid steer loaders

T65 Skid steer loaders


PERFORMANCE

T65

Operating Weight

4200

Rated Load

1000

Bucket Capacity

0.5

Max Speed

12/18

Max Traction

≥28.2

Max Breakout

≥20

Lifting Time Of Boom

7

Rated Power

55/2500

Engine Displacement

3.17

Dimension

Parameter

Overall operating height

3871

Height to bucket hinge pin

2900

Height to top of cab

2150

Height to bottom of level bucket

2730

Overall length without bucket

2750

Overall length with bucket

3500

Dumping angle at maximum height

40

Dumping height

2230

Dumping Distance

715

Rollback of bucKet on ground

30

Rollback of bucKet at full heirht

104

Wheelbase

1500

Ground clearance

200

Angle of departure

20

Front turning radius without bucket

1298

Front tuning radius

2010

Rear tuning radius

1714

Rear axle to bumper

890

Tread width

1462

Width

1782

Bucket width

1830
