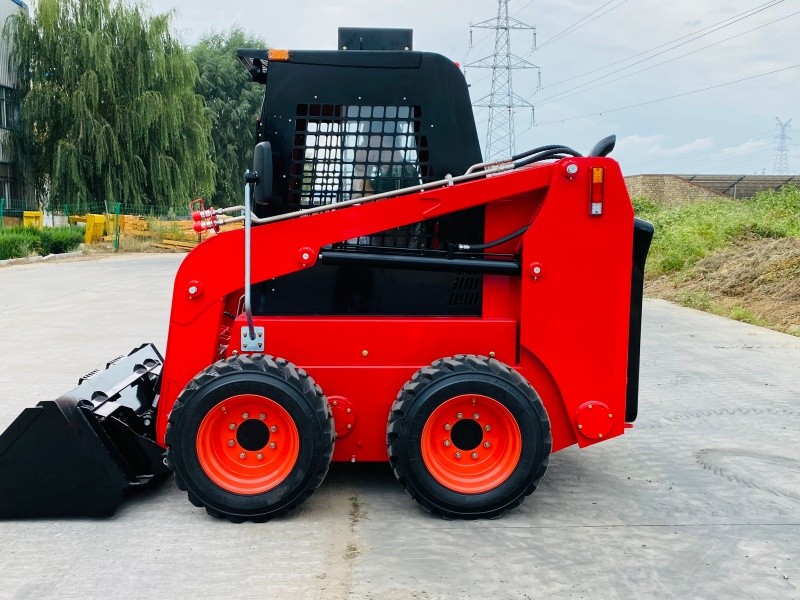

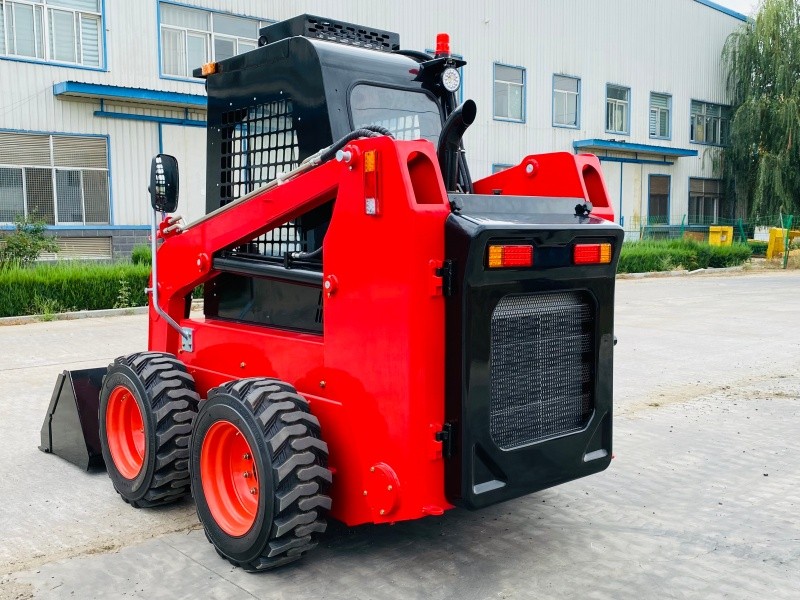

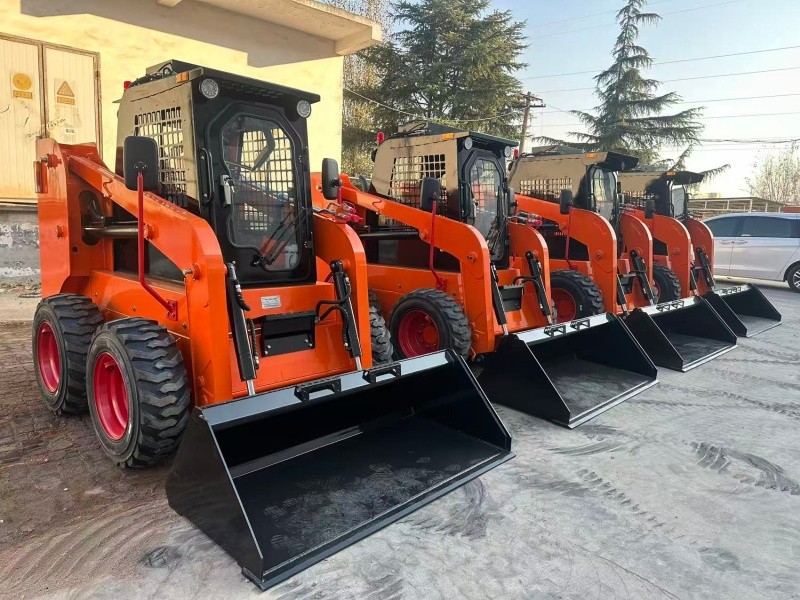

S45 Skid steer loaders

›

‹

›

Product Description

The S45 is a wheeled skid-steer loader designed for medium-duty material loading and high-level unloading operations. With an operating weight of 3,100 kg and a rated load of 700 kg—complemented by a 0.4 m³ bucket—it provides a robust foundation for loading tasks. Its performance capabilities, including a maximum travel speed of 12 km/h, a maximum tractive force of ≥25.40 kN, and a maximum breakout force of ≥18.4 kN, highlight its power during on-site transport and the initial stages of loading. The machine features a maximum operating height of 3,980 mm, a bucket pin height of 3,080 mm, and a discharge height of 2,380 mm; with an overall length of 3,420 mm (including the bucket), it is well-suited for operations requiring specific lift heights and discharge reaches.


S45 Skid steer loaders

S45 Skid steer loaders

S45 Skid steer loaders


PERFORMANCE

S45

Operating Weight

3100

Rated Load

700

Bucket Capacity

0.4

Max Speed

12

Max Traction

≥25.40

Max Breakout

≥18.4

Lifting Time Of Boom

7

Rated Power

36.7/2650

Engine Displacement

2.27

Dimension

Parameter

Overall operating height

3980

Height to bucket hinge pin

3080

Height to top of cab

2140

Height to bottom of level bucket

2913

Overall length without bucket

2640

Overall length with bucket

3420

Dumping angle at maximum height

40

Dumping height

2380

Dumping Distance

700

Rollback of bucKet on ground

30

Rollback of bucKet at full heirht

104

Wheelbase

991

Ground clearance

185

Angle of departure

20

Front turning radius without bucket

1300

Front tuning radius

2290

Rear tuning radius

1440

Rear axle to bumper

1080

Troad width, center line to center line

1450

Width between outside of two wheels

1720

Bucket width

1740
