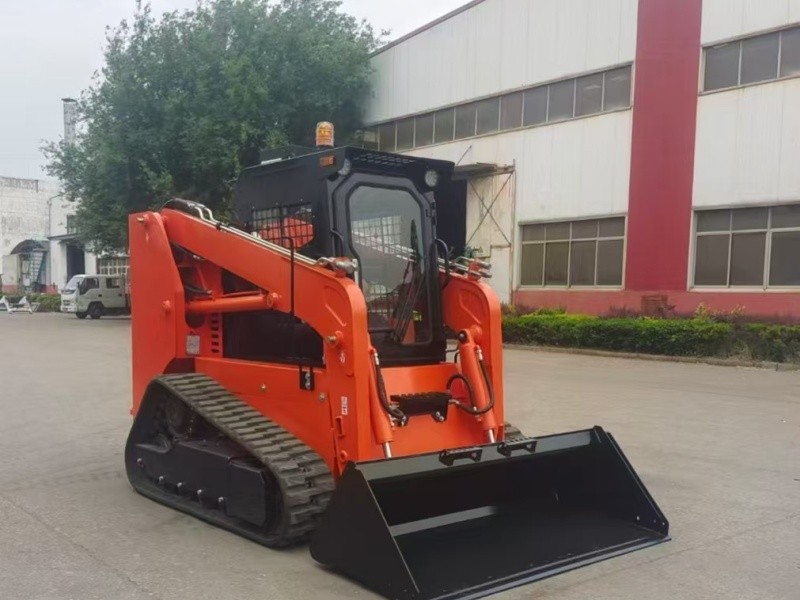

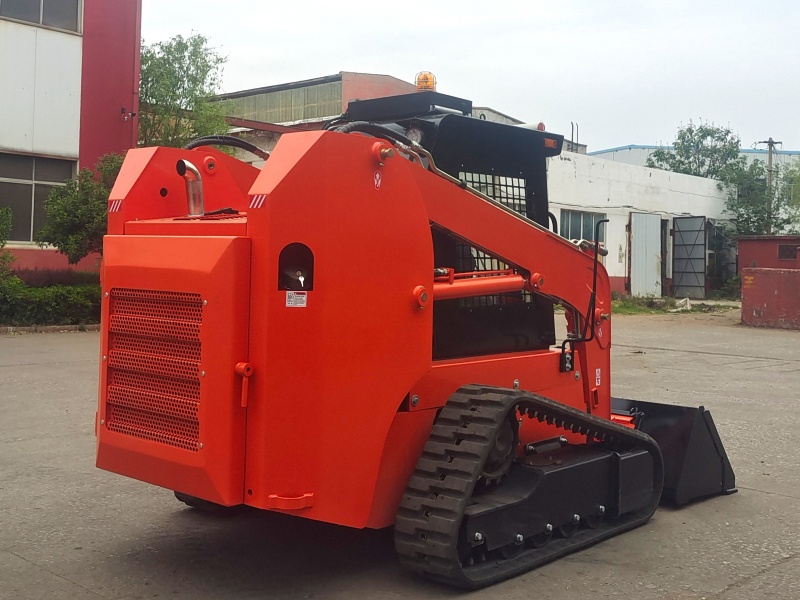

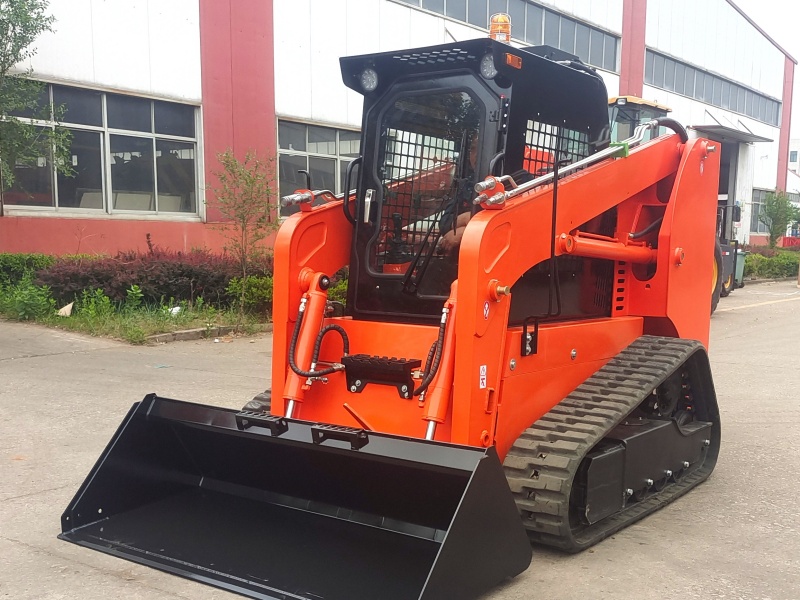

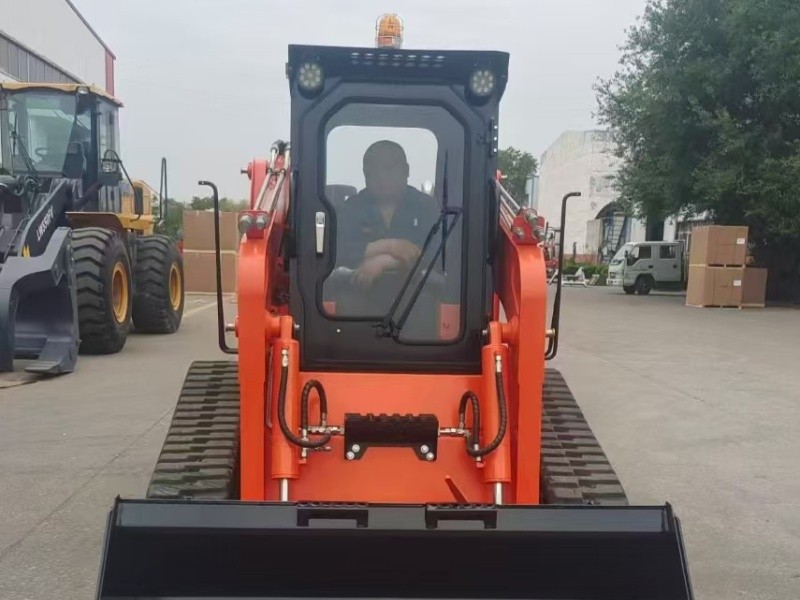

T100 Skid steer loaders

›

‹

›

Product Description

The T100 is a large skid-steer loader featuring a rated load capacity of 1,200 kg and a bucket capacity of 0.6 m³. Its operating weight of 4,800 kg provides a solid foundation for the machine's structure, while maximum travel speeds of 12/18 km/h balance the pace of loading and transport operations. With a maximum tractive force exceeding 30 kN and a maximum breakout force of at least 20 kN—complemented by a rated power of 74 kW at 2,200 rpm and a 4.088 L displacement—the machine boasts a powertrain configuration optimized for handling heavy loads. Offering a maximum operating height of 4,070 mm, a dump height of 2,450 mm, and an overall length (with bucket) of 3,795 mm, it is well-suited for engineering applications requiring high load capacities and elevated dumping points.


T100 Skid steer loaders

T100 Skid steer loaders

T100 Skid steer loaders

T100 Skid steer loaders


PERFORMANCE

T100

Operating Weight

4800

Rated Load

1200

Bucket Capacity

0.6

Max Speed

12/18

Max Traction

≥30

Max Breakout

≥20

Lifting Time Of Boom

7

Rated Power

74/2200

Engine Displacement

4.088

Dimension

Parameter

Overall operating height

4070

Height to bucket hinge pin

3150

Height to top of cab

2160

Height to bottom of level bucket

2983

Without bucket length

3000

Overall length with bucket

3795

Dumping angle at maximum height

40

Dumping height

2450

Dumping Distance

700

Rollback of bucKet on ground

30

Rollback of bucKet at full heirht

104

Wheelbase

1500

Ground clearance

200

Angle of departure

20

Front turning radius without bucket

1365

Front tuning radius

2439

Rear tuning radius

1617

Rear axle to bumper

938

Troad width, center line to center line

1654

Width between outside of two wheels

1994

Bucket width

2030
