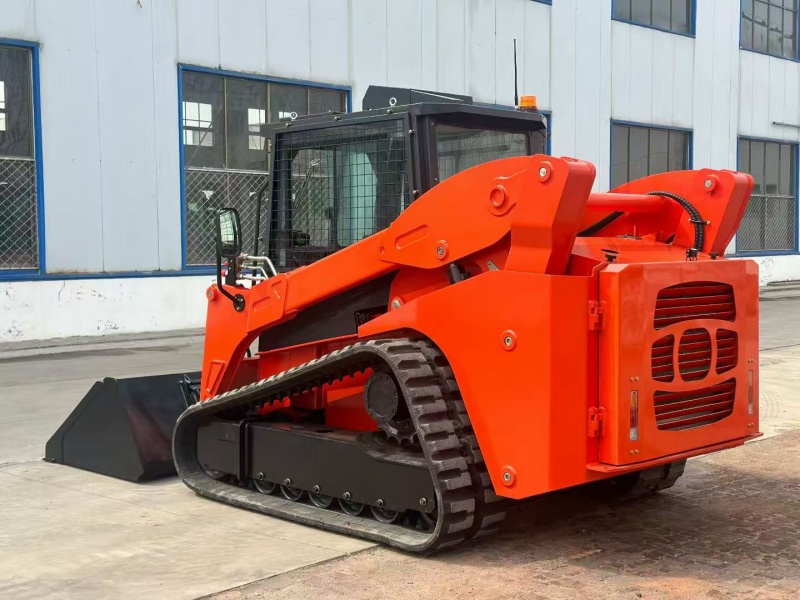

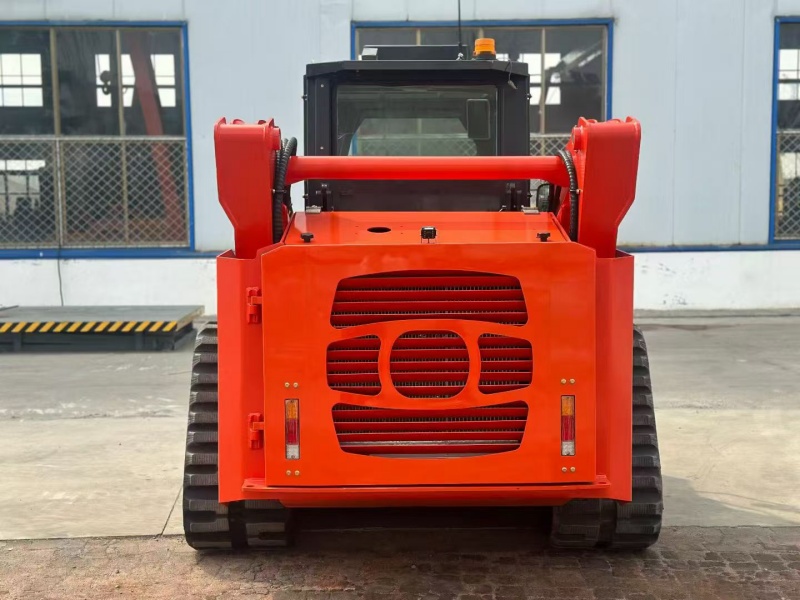

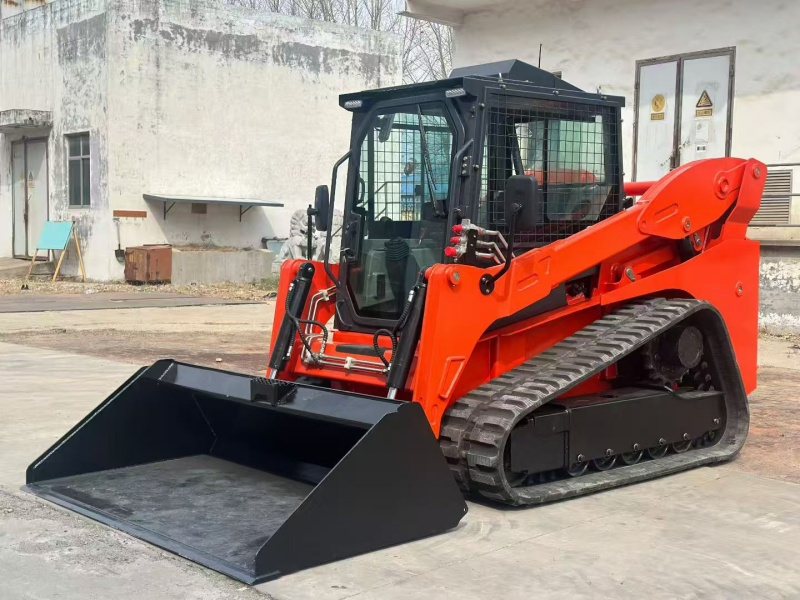

T120 Skid Steer Loader

›

‹

›

Product Description

The T120 is a tracked skid-steer loader distinguished by its industry-leading rated load capacity and a high-flow hydraulic system. With an operating weight of 5,000 kg, a rated load of 1,500 kg, and a standard hydraulic flow of 75 L/min—complemented by a high-flow system delivering 140 L/min—it is ideally suited for heavy-duty tasks requiring high hydraulic output. Key specifications defining its tracked platform and hydraulic capabilities include a maximum travel speed of 7.8/11 km/h, B45086C tracks, and a Cummins engine with a rated power of 97 kW; meanwhile, its high-reach loading and unloading capabilities are highlighted by a maximum operating height of 4,500 mm, a dump height of 2,150 mm, a dump reach of 1,325 mm, and a dump angle of 43° at maximum height.


T120 Skid Steer Loader

T120 Skid Steer Loader

T120 Skid Steer Loader


PERFORMANCE

T120

Operating Weight

5000

Rated Load

1500

Hydraulic Flow

75

Max Speed

7.8/11

High-Flow System Flow Date

140

Track Model

B45086C

Rated Power

CUMMINS 97

Dimension

Parameter

Overall operating height

4500

Height to bucket hinge pin

3225

Height to top of cab

2100

Height to bottom of level bucket

2985

Without bucket length

3145

Overall length with bucket

4240

Dumping angle at maximum height

43

Dumping height

2150

Dumping Distance

1325

Rollback of bucKet on ground

33

Rollback of bucKet at full heirht

90

Wheelbase

1680

Ground clearance

290

Angle of departure

20

Front turning radius without bucket

1600

Front tuning radius

2740

Rear tuning radius

1825

Rear axle to bumper

865

Troad width, center line to center line

1515

Width between outside of two wheels

1965

Bucket width

2068
