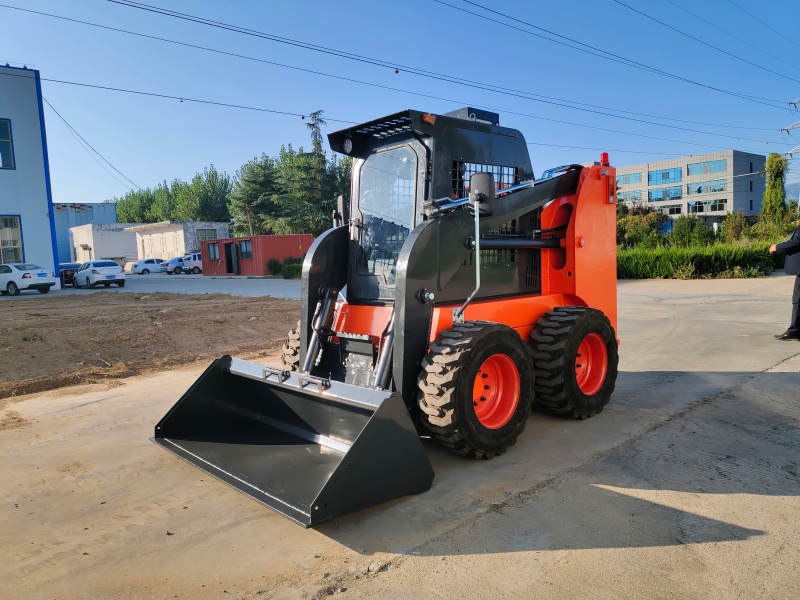

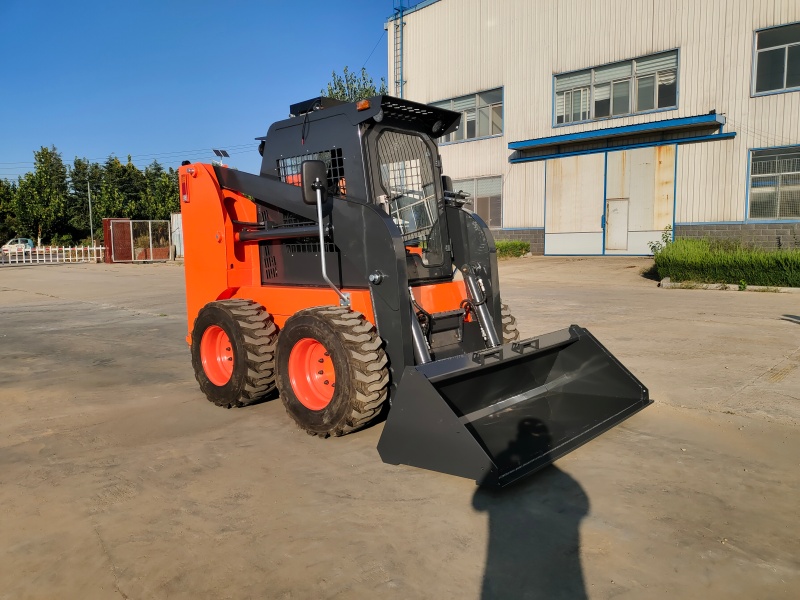

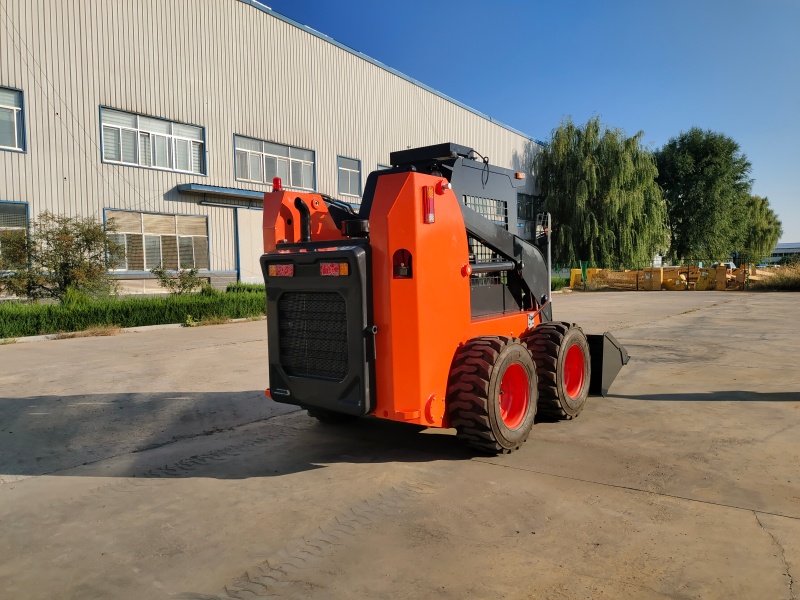

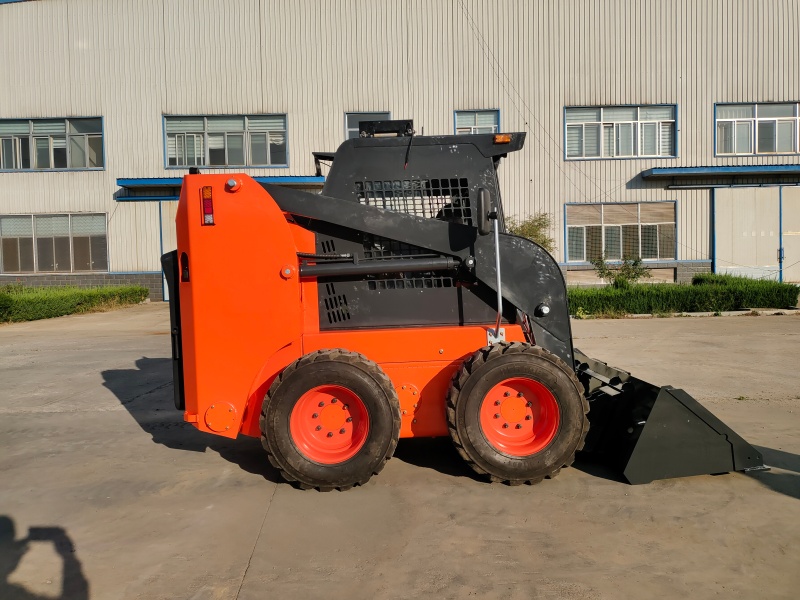

S65 Skid steer loaders

WhatsApp：+86 19853880668

Email：19853880668@gmail.com

Product Description

Built on a platform with a 950 kg rated operating capacity, the S65 features enhanced power and bucket capacity. With an operating weight of 3,400 kg and a 0.5 m³ bucket, it is well-suited for handling larger loads of earth, sand, gravel, and landscaping materials. Its performance specifications—including a top travel speed of 12 km/h, a maximum tractive force of ≥28.2 kN, and a maximum breakout force of ≥20 kN—demonstrate superior capabilities in traction and heavy-duty tasks. Powered by a 55 kW/2,500 rpm engine with a 3.17 L displacement, and offering a maximum operating height of 4,070 mm and a dump height of 2,450 mm, the S65 is ideally positioned for both high-level loading and on-site material transport.

PERFORMANCE	S65
Operating Weight	3400
Rated Load	950
Bucket Capacity	0.5
Max Speed	12
Max Traction	≥28.2
Max Breakout	≥20
Lifting Time Of Boom	7
Rated Power	55/2500
Engine Displacement	3.17
Dimension	Parameter
Overall operating height	4070
Height to bucket hinge pin	3150
Height to top of cab	2160
Height to bottom of level bucket	2983
Overall length without bucket	2880
Overall length with bucket	3580
Dumping angle at maximum height	40
Dumping height	2450
Dumping Distance	700
Rollback of bucKet on ground	30
Rollback of bucKet at full heirht	104
Wheelbase	1115
Ground clearance	205
Angle of departure	20
Front turning radius without bucket	1250
Front tuning radius	2112
Rear tuning radius	1774
Rear axle to bumper	1082
Troad width, center line to center line	1500
Width between outside of two wheels	1880
Bucket width	1880
