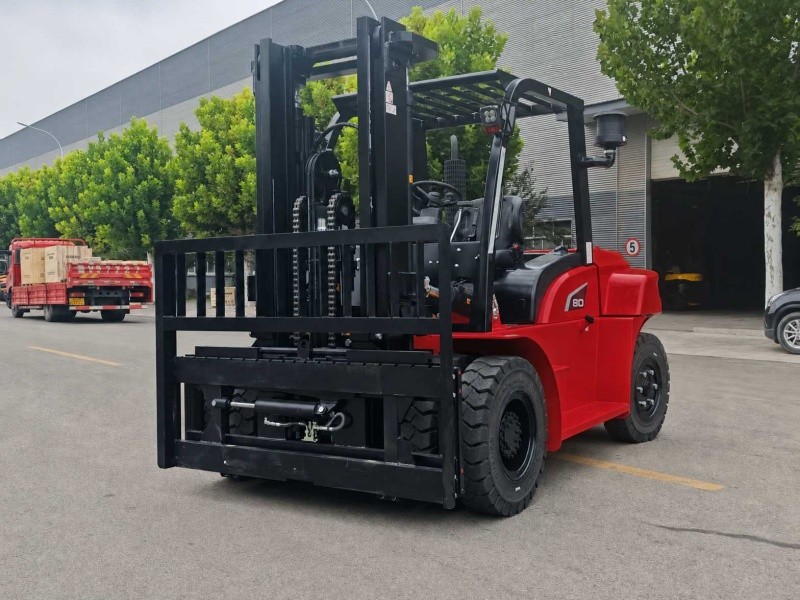

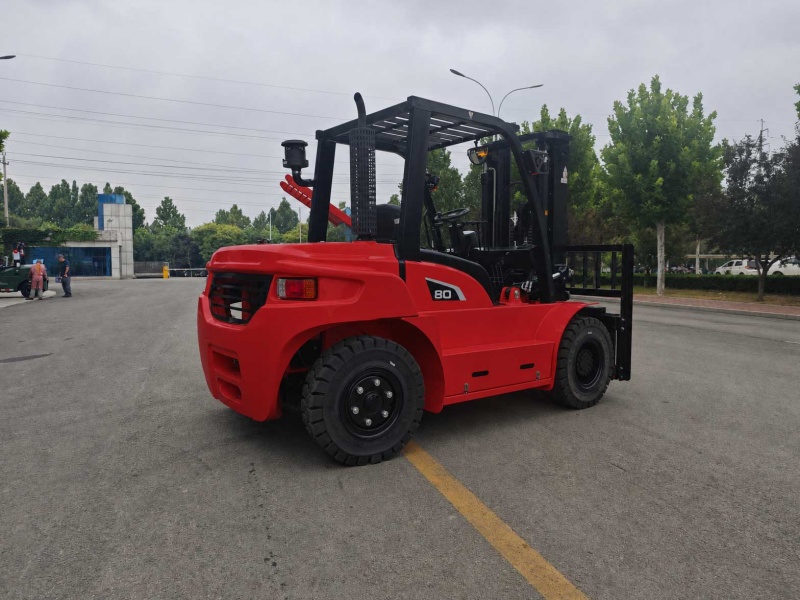

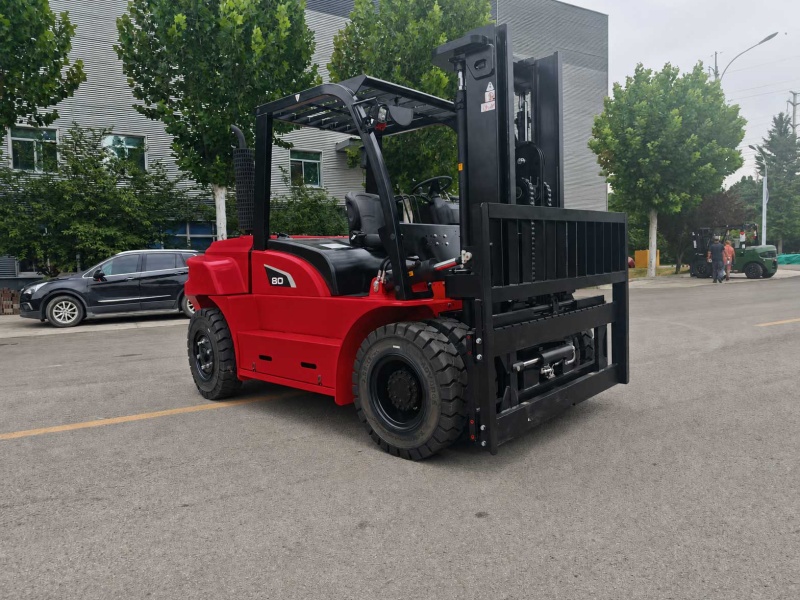

CPCD80 Forklift

Product Description

BASIC TECHNICAL PARAMETERS	Unit	Parameters
Model		CPCD-G80
Power type		Diesel
Lift capacity	(kg)	8000
Load center distance	(mm)	600
Battery(Voltage/Capacity)	(V/Ah)	24/100
PERFORMANCE PARAMETERS	Unit	Parameters
Max.lift height	(mm)	3000
Free lift height	(mm)	190
Mast tilt angle (front/rear)	(°)	6/12
Max.lift speed(full load/no load)	(mm/s)	442/484
Max.lowering speed(full load/no load)	(mm/s)	400/360
Max.travelling speed(full load/no load)	(km/h)	25/30
Min.turning radius	(mm)	3700
Gradeability(full load/no load)	(%)	20/25
Max.traction force	(KN)	70
Overweight	(kg)	9900
DIMENSIONS	Unit	Parameters
Length(without fork)	(mm)	3830
Width	(mm)	2000
Height of mast	(mm)	2560
Overall height (overhead guard)	(mm)	2510
Height of load-backrest	(mm)	1500
Overall height at max.lift	(mm)	4490
Min.ground clearance	(mm)	260
Wheel base	(mm)	2500
Front wheel tread	(mm)	1470
Rear wheel tread	(mm)	1710
Front overhang	(mm)	650
Rear overhang	(mm)	740
OTHER PARAMETERS	Unit	Parameters
Front tires		8.25-15-14PR
Rear tires		8.25-15-14PR
Fork size(LWH)	(mm)	1220×150×70
ENGINES	Unit	Parameters
Engine model		All-diesel V32-50C45
Rated power	(kw/rpm)	36.8/2500
Rated torque	(N.m/rpm)	200/1600-1800
Number of cylinders		4
Displacement	(L)	3.17
