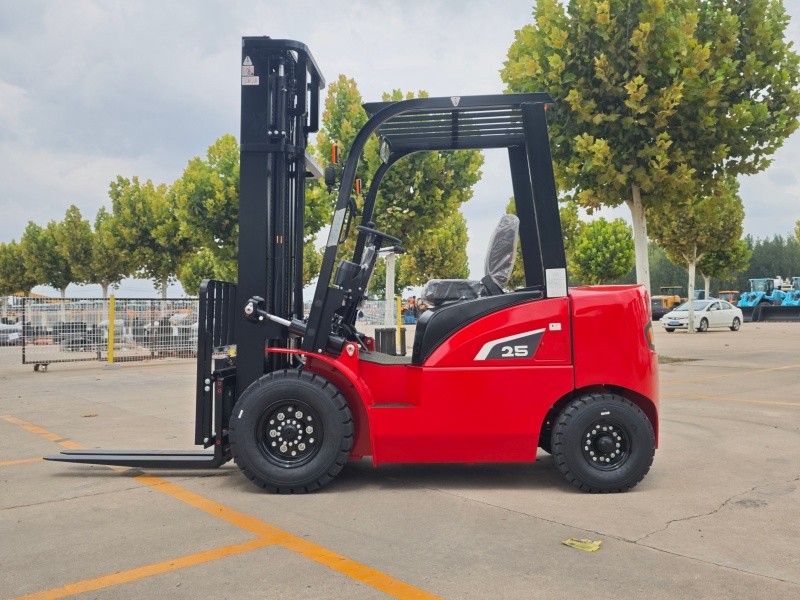

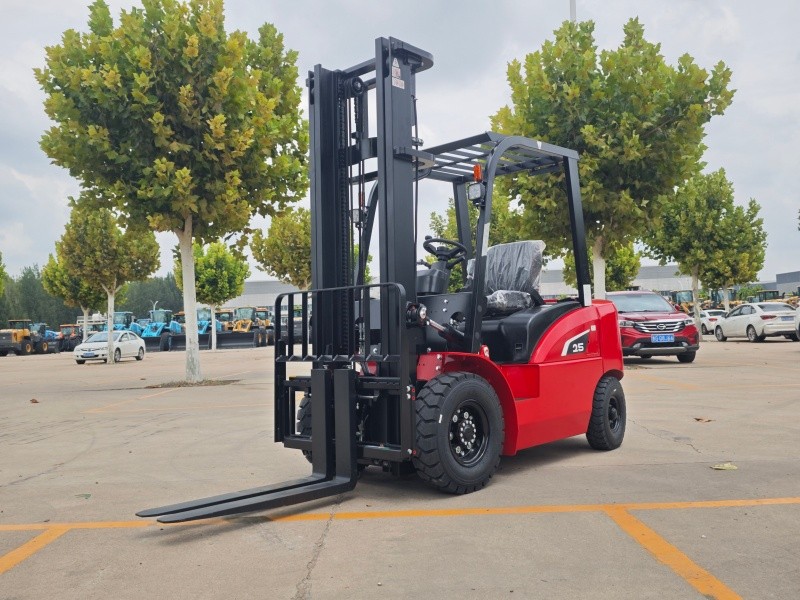

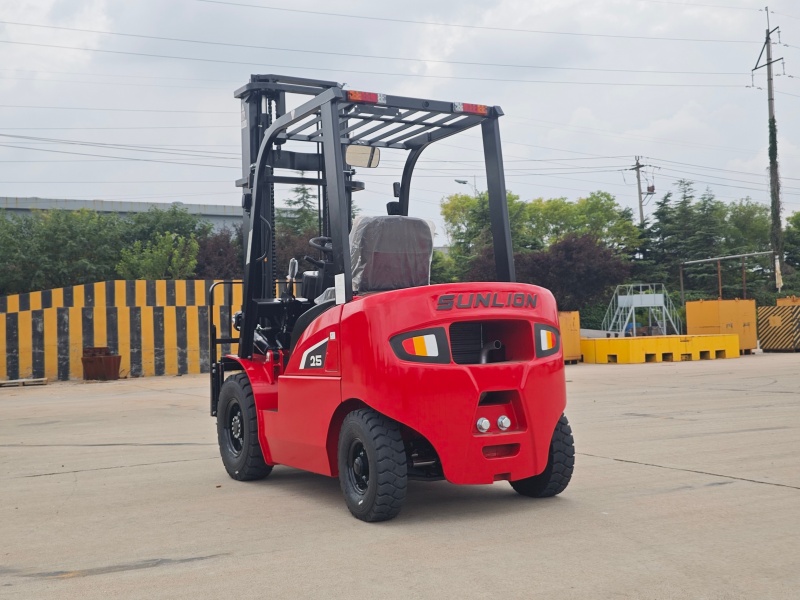

CPC(D)25 Forklift

Product Description

BASIC TECHNICAL PARAMETERS	Unit	Parameters
Model		CPC (D) -G25
Power Type		diesel fuel
Rated Lifting Capacity	kg	2500
Load Center	mm	500
Battery (Voltage/Capacity)	V/Ah	12/80
PERFORMANCE PARAMETERS	Unit	Parameters
Maximum lifting height	mm	3000
Free lift height	mm	130
Mast tilt angle (forward/backward)	°	6/12
Maximum lifting speed (laden/unladen)	mm/s	560/600
Maximum lowering speed (laden/unladen)	mm/s	540/450
Maximum travel speed (laden/unladen)	km/h	17/19
Minimum turning radius	mm	2290
Gradeability (laden/unladen)	%	15/20
Maximum drawbar pull	KN	16.5
Service weight	kg	3700
DIMENSIONS	Unit	Parameters
Length (excluding forks)	mm	2520
Width	mm	1170
Mast height	mm	2000
Overhead guard height	mm	2110
Load backrest height	mm	965
Overall height at maximum lift	mm	4035
Minimum ground clearance	mm	110
Wheelbase	mm	1650
Front wheel track	mm	970
Rear wheel track	mm	980
Front overhang	mm	462
Rear overhang	mm	408
OTHER PARAMETERS	Unit	Parameters
Front tire		7.00-12-12PR
Rear tire		6.00-9-10PR
Fork (Length × Width × Thickness)	mm	1070×120×40
ENGINES	Unit	Parameters
Model		All-diesel V29-50V42
Rated Power	kW/r	36.8/2500
Maximum Torque	N.m/r	170/1800
Number of Cylinders		4
Displacement	L	2.85
