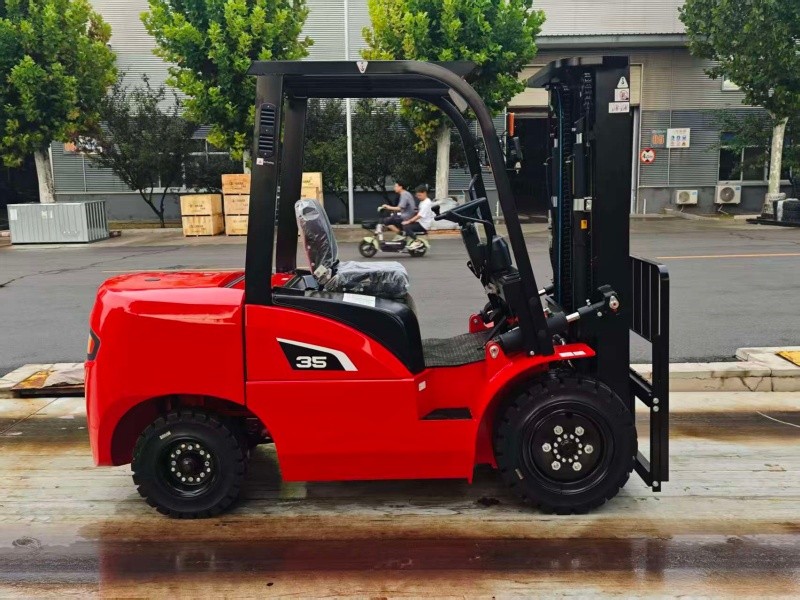

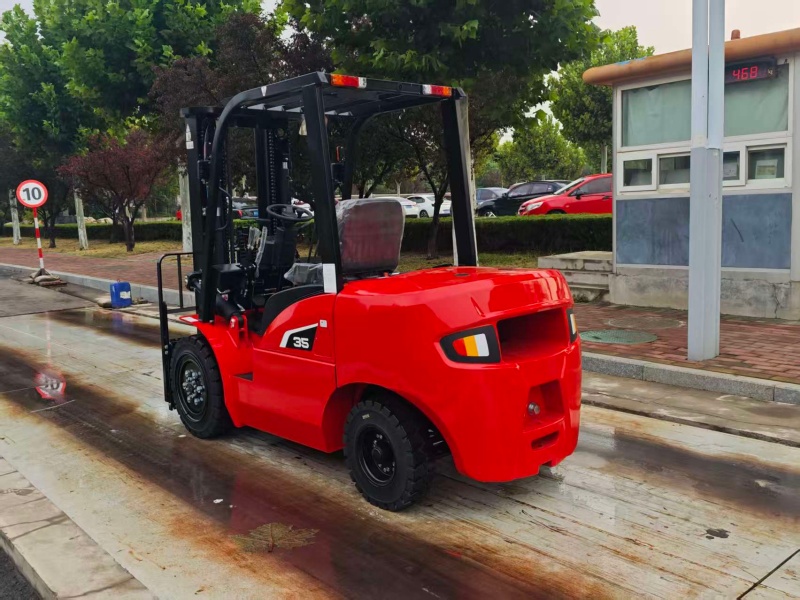

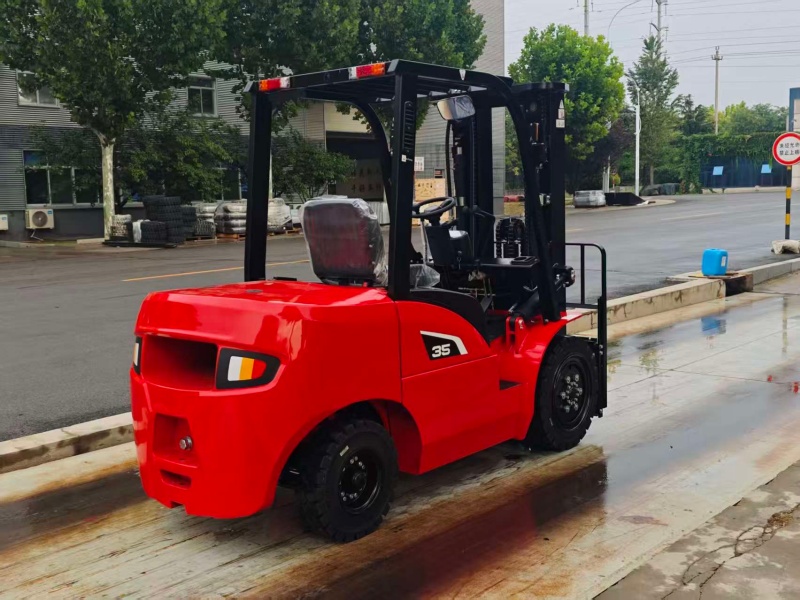

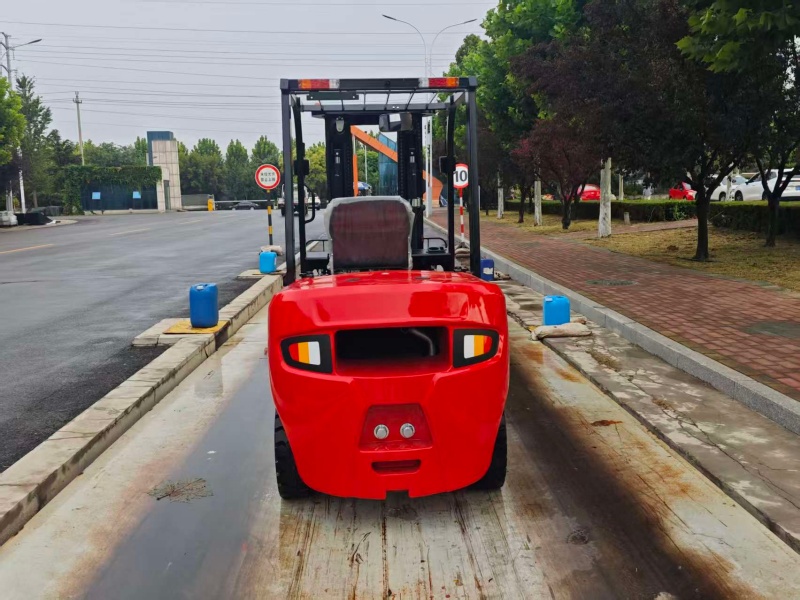

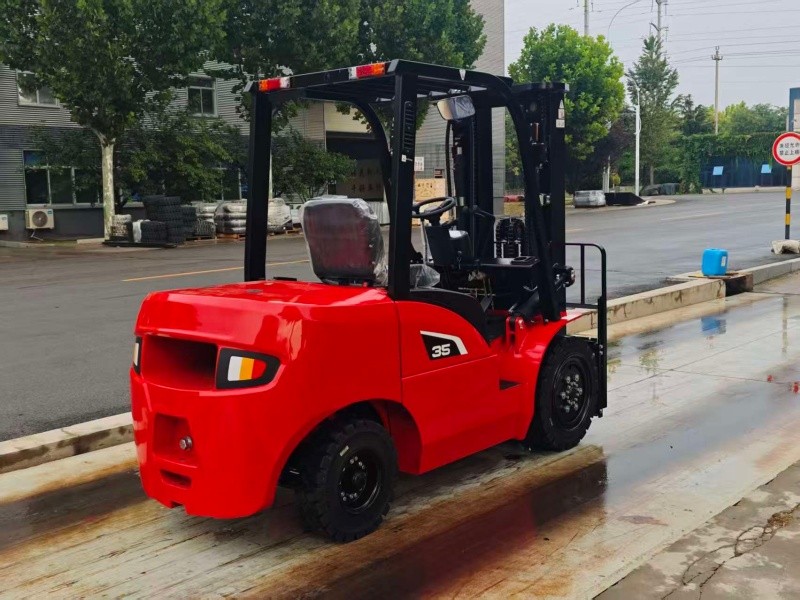

CPC(D)35 Forklift

Product Description

BASIC TECHNICAL PARAMETERS	Unit	Parameters
Model		CPC(D)-G35
Power Type		diesel fuel
Rated Lifting Capacity	kg	3500
Load Center	mm	500
Battery (Voltage/Capacity)	V/Ah	12/80
PERFORMANCE PARAMETERS	Unit	Parameters
Maximum lifting height	mm	3000
Free lift height	mm	130
Mast tilt angle (forward/backward)	°	6/12
Maximum lifting speed (laden/unladen)	mm/s	455/480
Maximum lowering speed (laden/unladen)	mm/s	450/410
Maximum travel speed (laden/unladen)	km/h	18.5/19
Minimum turning radius	mm	2620
Gradeability (laden/unladen)	%	15/20
Maximum drawbar pull	KN	20
Service weight	kg	4600
DIMENSIONS	Unit	Parameters
Length (excluding forks)	mm	2880
Width	mm	1230
Mast height	mm	2130
Overhead guard height	mm	2145
Load backrest height	mm	1225
Overall height at maximum lift	mm	4230
Minimum ground clearance	mm	130
Wheelbase	mm	1800
Front wheel track	mm	1000
Rear wheel track	mm	970
Front overhang	mm	480
Rear overhang	mm	600
OTHER PARAMETERS	Unit	Parameters
Front tire		28×9-15-14PR
Rear tire		6.50-10-10PR
Fork (Length × Width × Thickness)	mm	1070×122×50
ENGINES	Unit	Parameters
Model		All-diesel V29-50V42
Rated Power	kW/r	36.8/2500
Maximum Torque	N.m/r	170/1800
Number of Cylinders		4
Displacement	L	2.85
