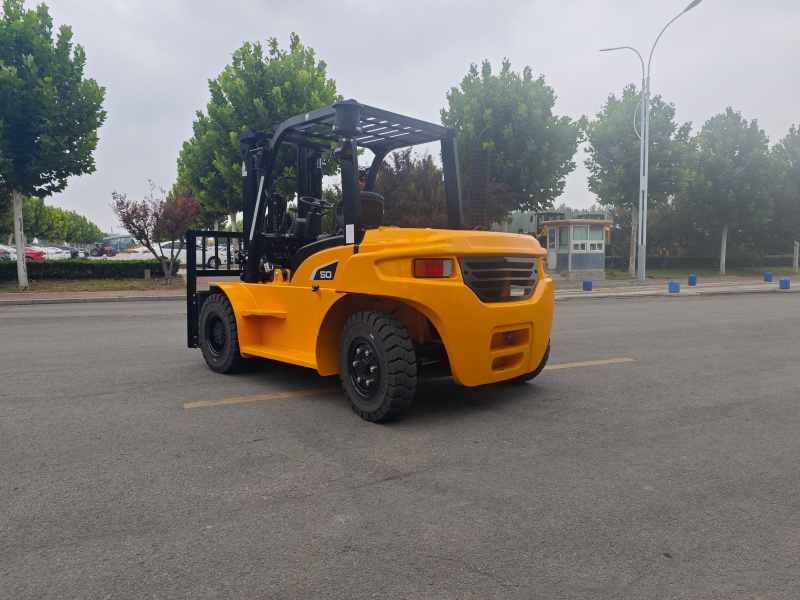

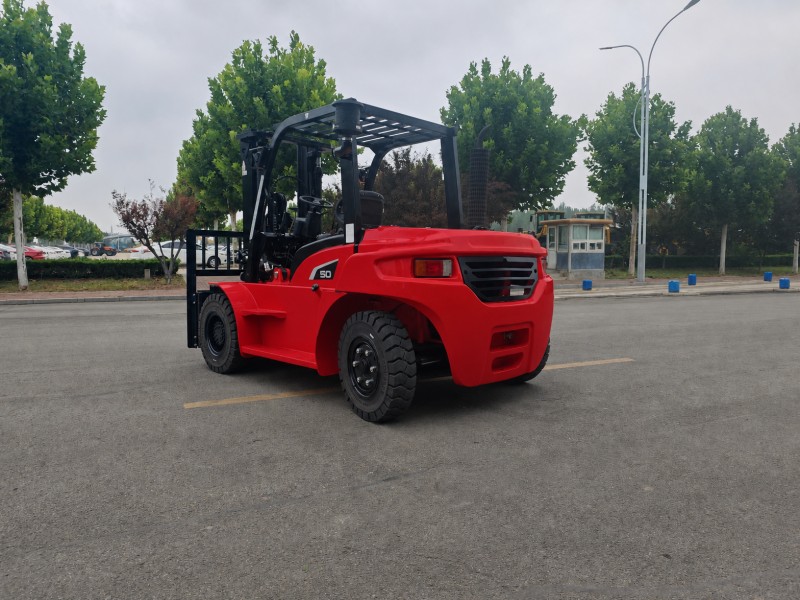

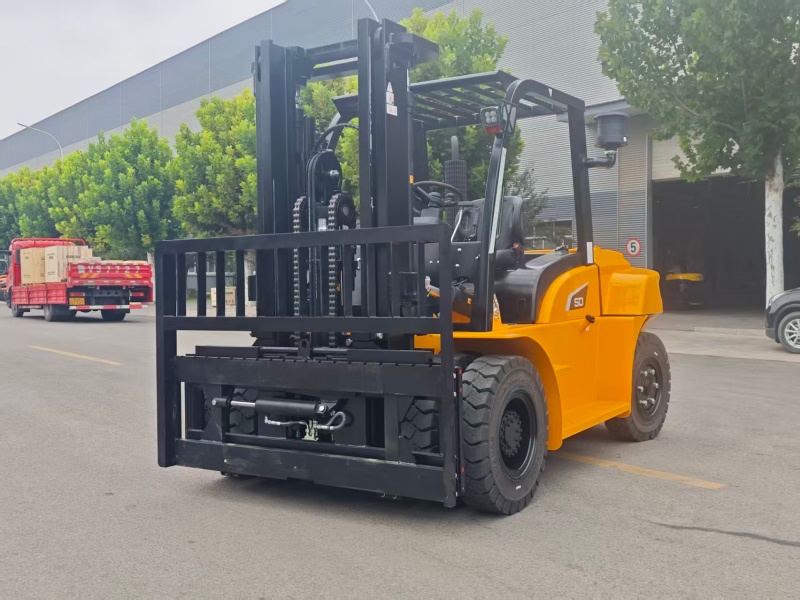

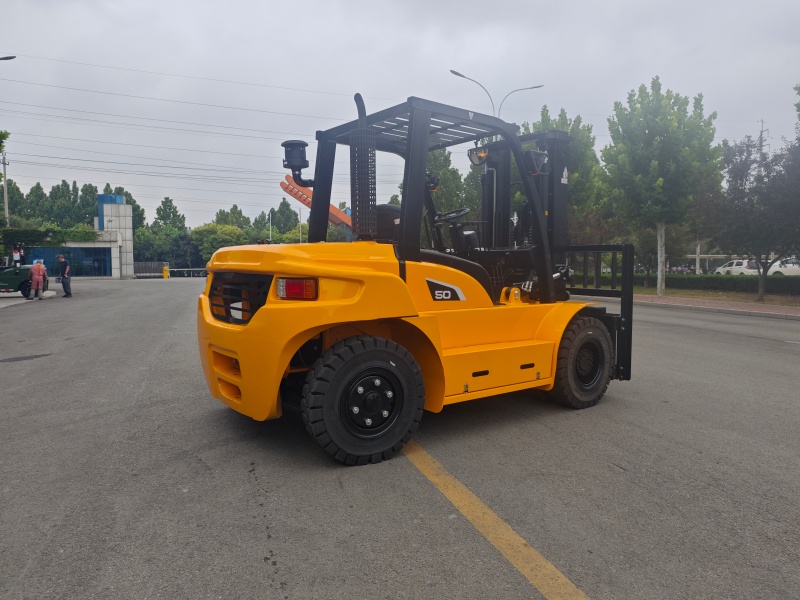

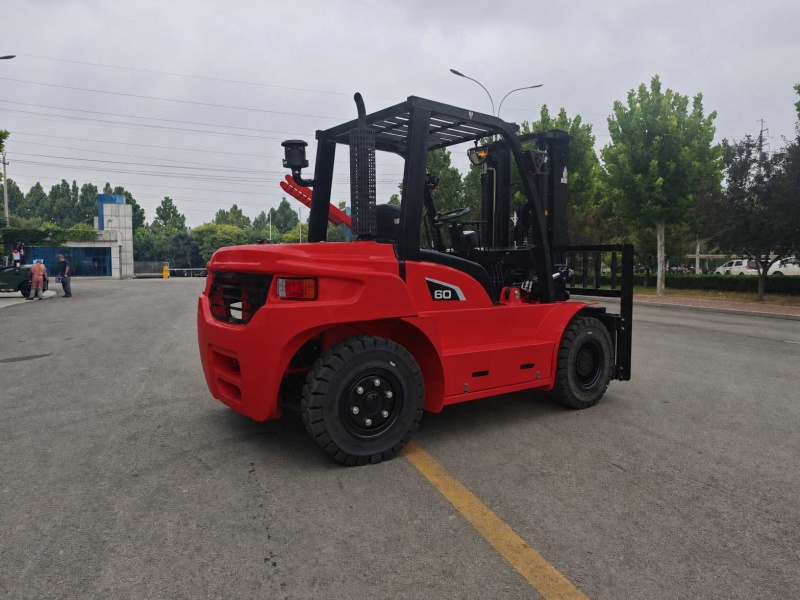

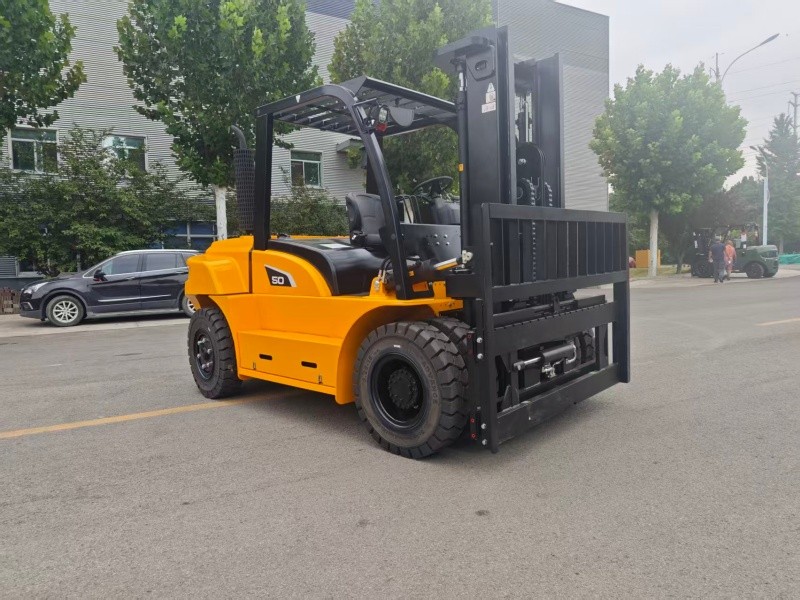

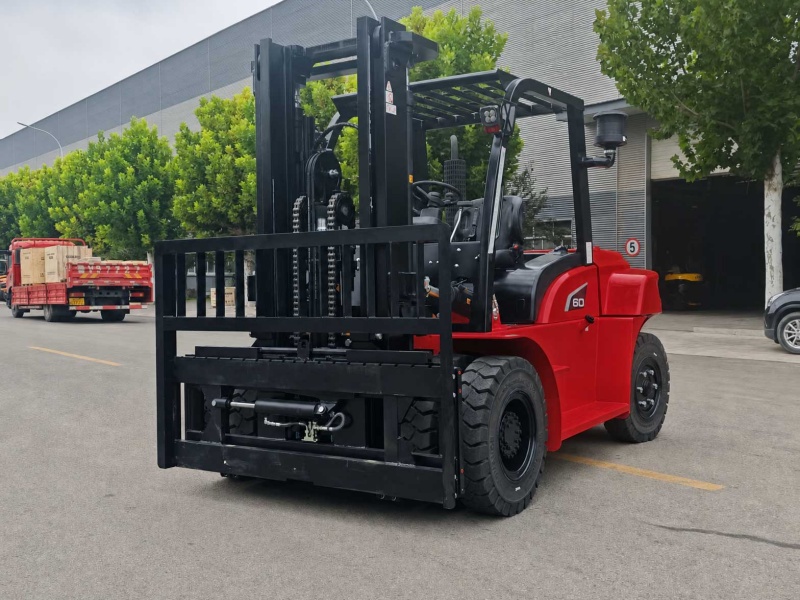

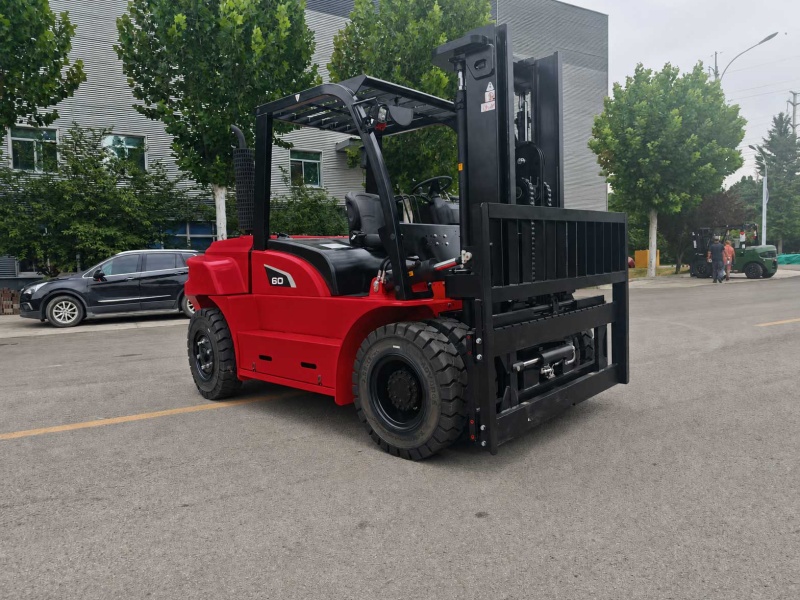

CPCD60 Forklift

Product Description

BASIC TECHNICAL PARAMETERS	Unit	Parameters
Model		CPCD-G60
Power type		Diesel
Lift capacity	(kg)	6000
Load center distance	(mm)	600
Battery(Voltage/Capacity)	(V/Ah)	24/100
PERFORMANCE PARAMETERS	Unit	Parameters
Max.lift height	(mm)	3000
Free lift height	(mm)	190
Mast tilt angle (front/rear)	(°)	6/12
Max.lift speed(full load/no load)	(mm/s)	540/570
Max.lowering speed(full load/no load)	(mm/s)	450/360
Max.travelling speed(full load/no load)	(km/h)	25/30
Min.turning radius	(mm)	3320
Gradeability(full load/no load)	(%)	20/25
Max.traction force	(KN)	70
Overweight	(kg)	8800
DIMENSIONS	Unit	Parameters
Length(without fork)	(mm)	3480
Width	(mm)	2000
Height of mast	(mm)	2500
Overall height (overhead guard)	(mm)	2450
Height of load-backrest	(mm)	1440
Overall height at max.lift	(mm)	4430
Min.ground clearance	(mm)	200
Wheel base	(mm)	2250
Front wheel tread	(mm)	1470
Rear wheel tread	(mm)	1710
Front overhang	(mm)	590
Rear overhang	(mm)	640
OTHER PARAMETERS	Unit	Parameters
Front tires		8.25-15-14PR
Rear tires		8.25-15-14PR
Fork size(LWH)	(mm)	1220×150×60
ENGINES	Unit	Parameters
Engine model		All-diesel V32-50C45
Rated power	(kw/rpm)	36.8/2500
Rated torque	(N.m/rpm)	200/1600-1800
Number of cylinders		4
Displacement	(L)	3.17
