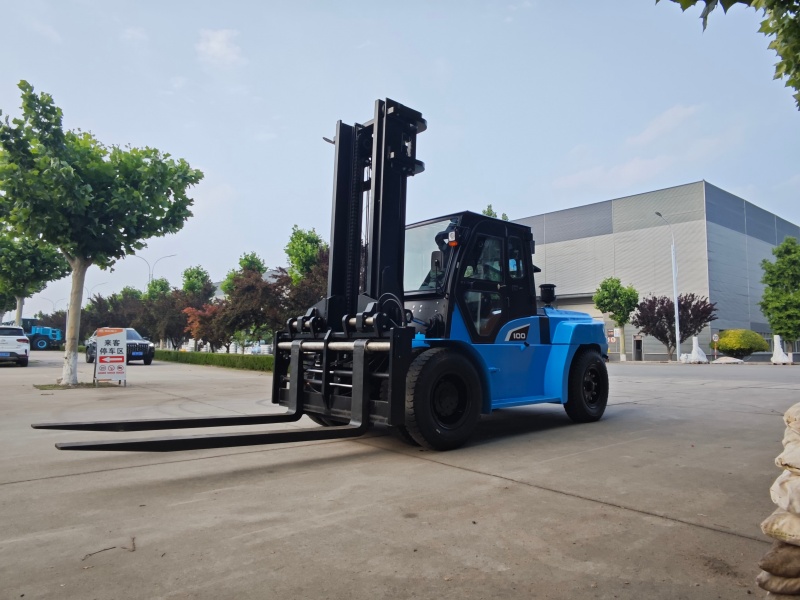

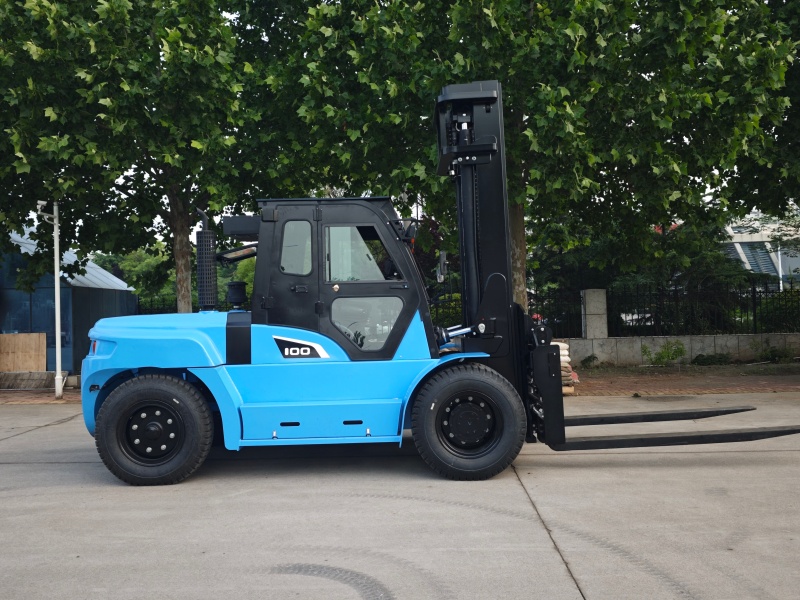

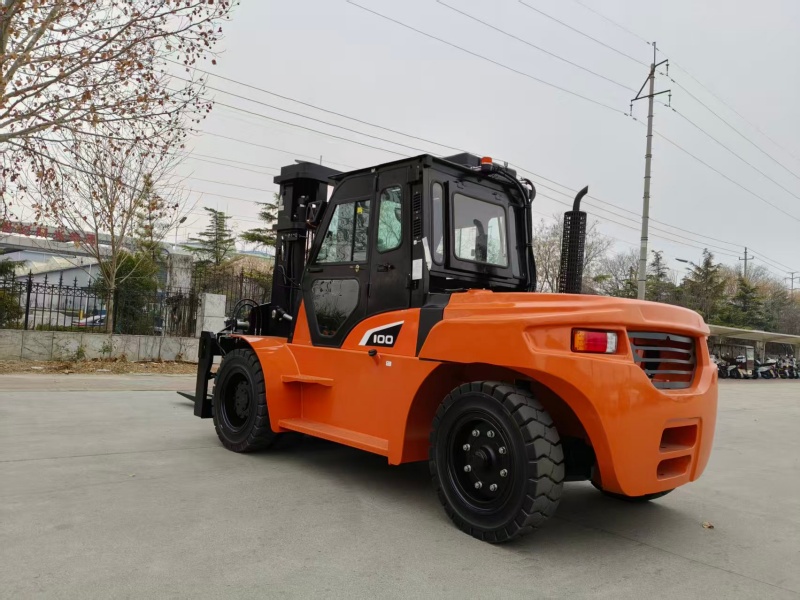

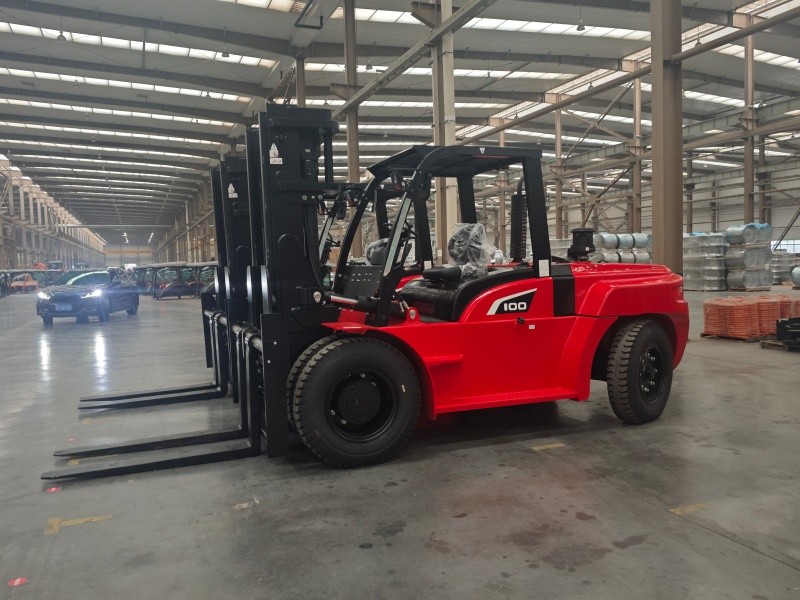

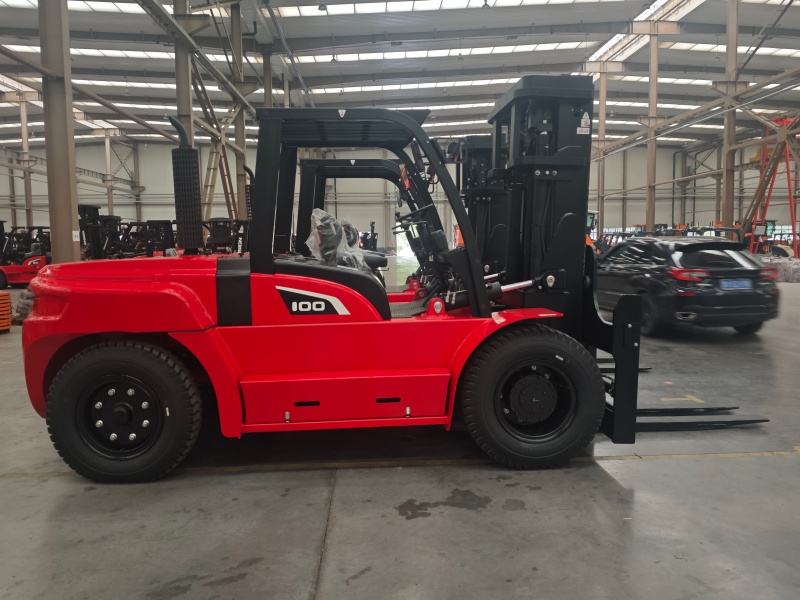

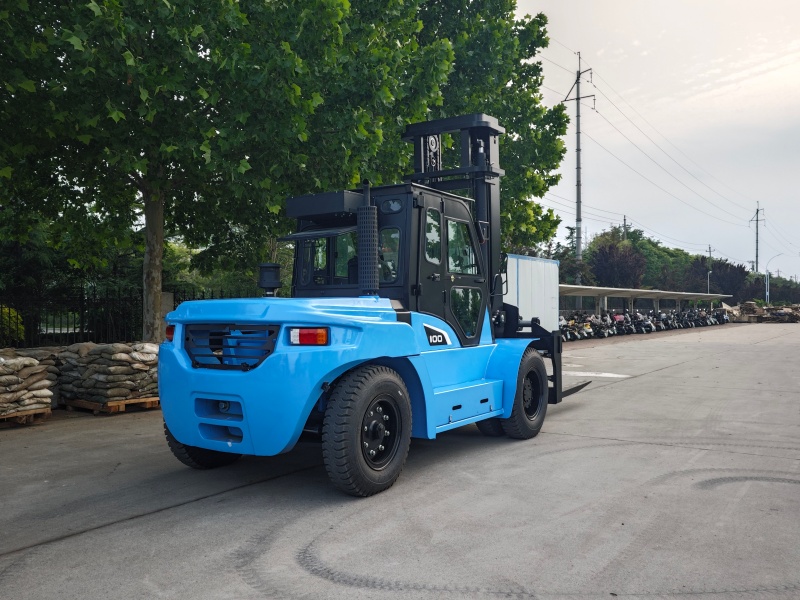

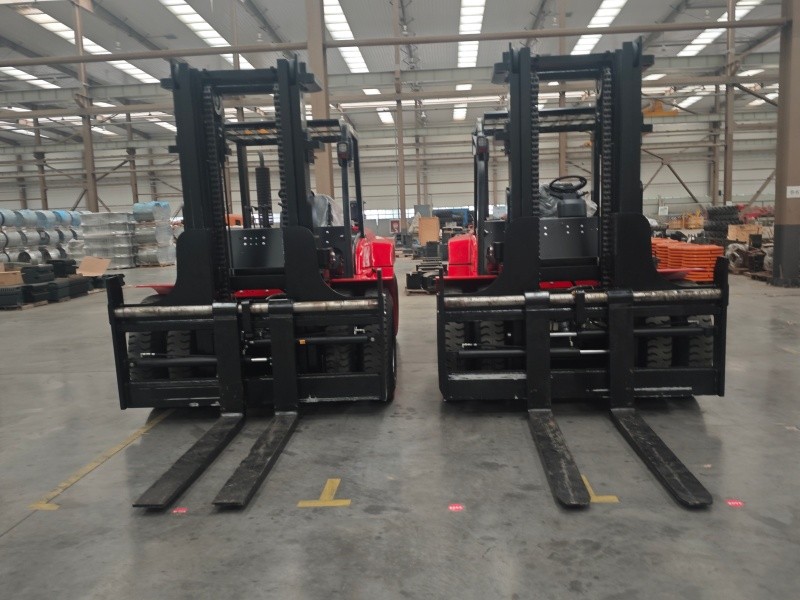

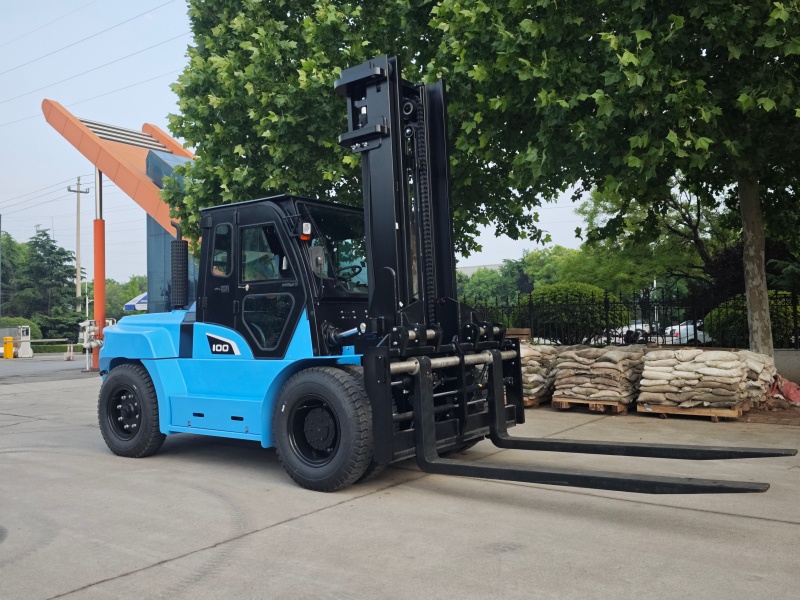

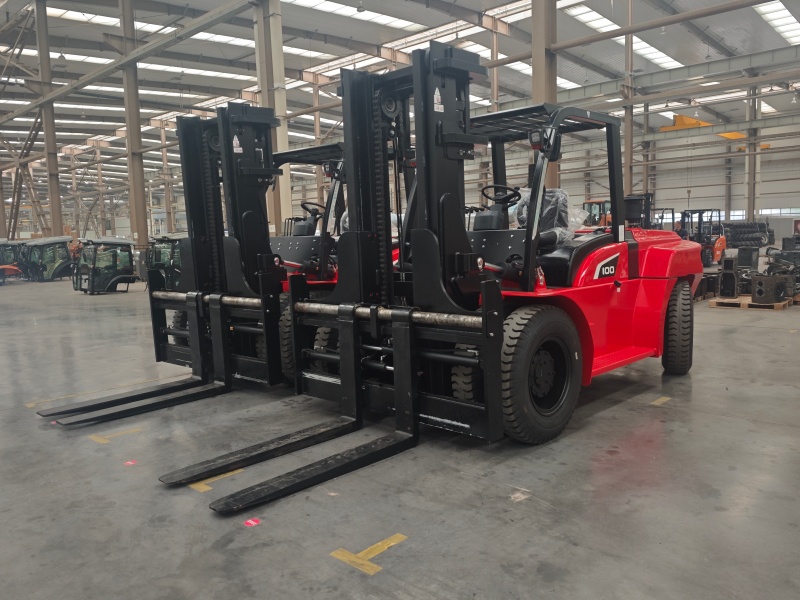

CPCD100 Forklift

Product Description

BASIC TECHNICAL PARAMETERS	Unit	Parameters
Model		CPCD-G100
Power type		Diesel
Lift capacity	(kg)	10000
Load center distance	(mm)	600
Battery(Voltage/Capacity)	(V/Ah)	24/100
PERFORMANCE PARAMETERS	Unit	Parameters
Max.lift height	(mm)	3000
Free lift height	(mm)	195
Mast tilt angle (front/rear)	(°)	6/12
Max.lift speed(full load/no load)	(mm/s)	350/390
Max.lowering speed(full load/no load)	(mm/s)	370/350
Max.travelling speed(full load/no load)	(km/h)	25/30
Min.turning radius	(mm)	4100
Gradeability(full load/no load)	(%)	20/25
Max.traction force	(KN)	70
Overweight	(kg)	13100
DIMENSIONS	Unit	Parameters
Length(without fork)	(mm)	4340
Width	(mm)	2200
Height of mast	(mm)	2850
Overall height (overhead guard)	(mm)	2560
Height of load-backrest	(mm)	/
Overall height at max.lift	(mm)	4325
Min.ground clearance	(mm)	250
Wheel base	(mm)	2800
Front wheel tread	(mm)	1600
Rear wheel tread	(mm)	1725
Front overhang	(mm)	740
Rear overhang	(mm)	800
OTHER PARAMETERS	Unit	Parameters
Front tires		9.00-20-14PR
Rear tires		9.00-20-14PR
Fork size(LWH)	(mm)	1220×180×75
ENGINES	Unit	Parameters
Engine model		All-diesel V32-50C45
Rated power	(kw/rpm)	36.8/2500
Rated torque	(N.m/rpm)	200/1600-1800
Number of cylinders		4
Displacement	(L)	3.17
