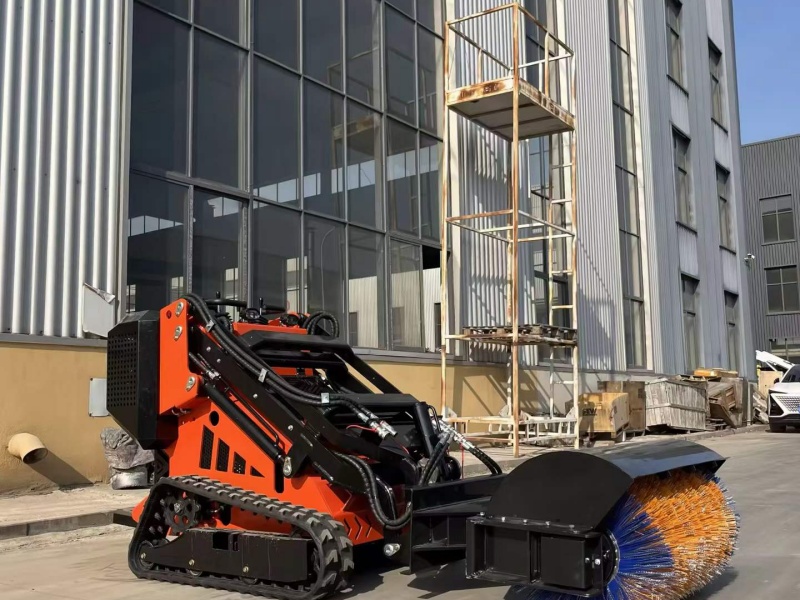

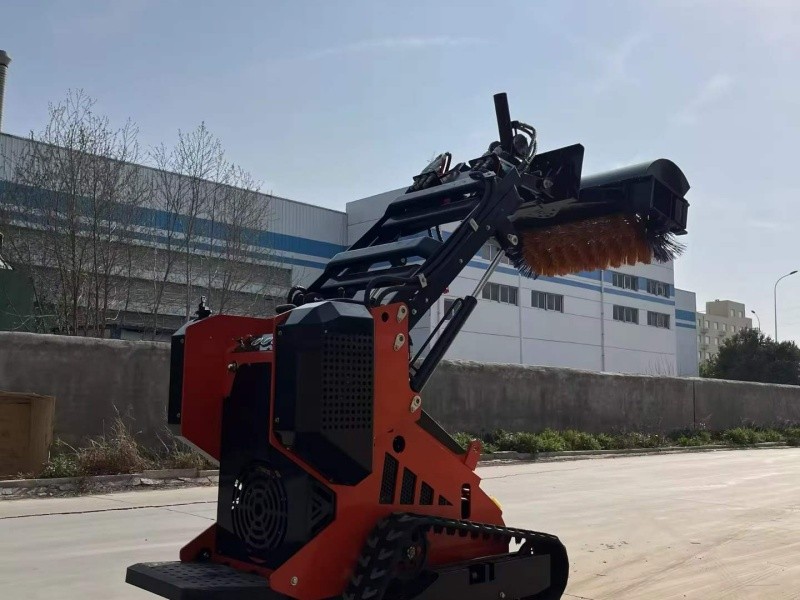

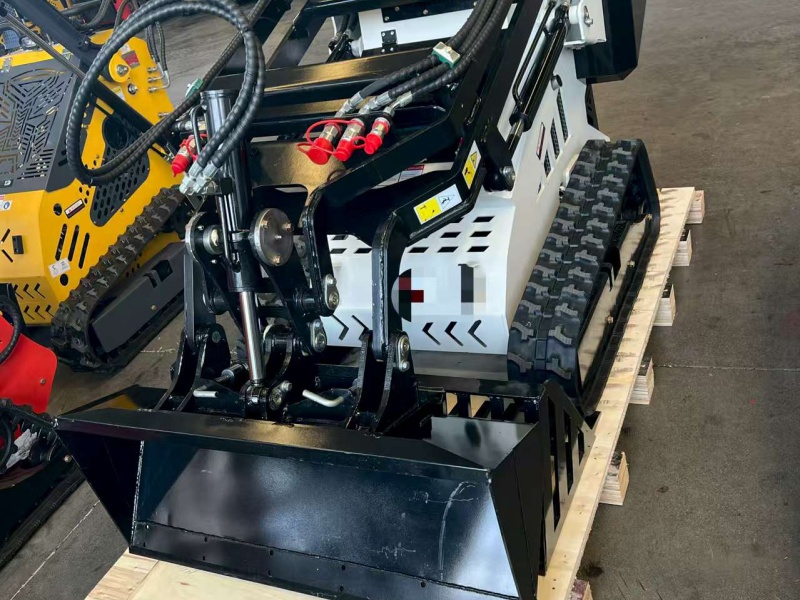

T470 Skid steer loaders

›

‹

›

Product Description

The T470 is a compact loader characterized by its lightweight design and versatility across various operating environments. With an operating weight of 890 kg and powered by a 16.8 kW Runtong R740D engine, it offers a rated load capacity of 350 kg and a maximum load capacity of 400 kg. Featuring a 0.12 m³ bucket and a travel speed of 0–4 km/h, it is well-suited for light-duty tasks such as landscaping, residential construction, and material handling. Its specifications—including a working height of 2,373 mm, a dumping height of 1,376 mm, a ground clearance of 140 mm, and a bucket width/height of 1,100 mm—allow it to balance loading height requirements with compact dimensions for operation in confined spaces.


T470 Skid steer loaders

T470 Skid steer loaders

T470 Skid steer loaders


PERFORMANCE

T470

Operating Weight

890

Bucket Capacity

0.12

Travel Speed

0-4

Gradeability

25

Working Height

2373

Loading Height

2071

Dumping Height

1376

Ground Clearance

140

Overall Length

2337

Overall Width

1100

Overall Height

1350

Bucket Width/Height

1100

Engine Brand

RUNTONG

Engine Model

R740D

Rated Power

16.8

Max.Speed

3600

Rated Load

350

Rated Loading Capacity

400

Number Of Cylinders

2

Cooling Method

air-cooled

Dimension

Parameter

Engine Oil Capacity

2

Fuel Type

gasoline

Fuel Guade

92#

Fuel Consumption

0.37

Main Pump Type/Model

hgp-33a-f8r/8r /8r 三进三出

Main Pump Brand

huaheng

Rated Pressure

18

Max.Pump Displacement

8

Control Valve

2+2+2

Control Valve Brand

TAIHENG

Rated Pressure

18

Travel Motor Type

SHENGYUAN

Travel Motor Brand

bmer-300

Tension Type

mechanical

Fuel Tank Capacity

21

Oil Tank

1.6

Hydraulic Oil Tank Capacity

42
