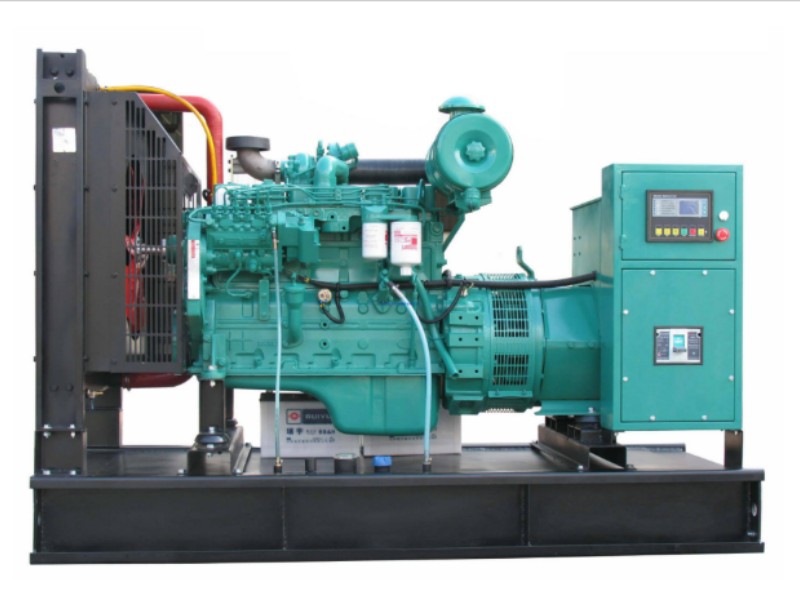

Chongqing Cummins Generator Sets

Product Description

Model	Prime power (kW)	Standby power (kW)	Engine model	Cylinders and arrangement	Bore×Stroke	Displacement (L)	Specific fuel consumption (g/kW.h)	Compression ratio	Weight(kg)	Overall dimensions (LxWxH)（mm）
200GF-C	200kW	220kW	QSNT-G6	6L	140×152	14	≤214	16.7:1	2620	2865×972×1740
250GF-C	250kW	280kW	QSNT-G1	6L	140×152	14	≤215	16.7:1	3100	3020×972×1730
300GF-C	300kW	330kW	QSNT-G2	6L	140×152	14	≤210	16.7:1	3300	3190×1373×1740
350GF-C	360kW	400kW	QSNT-G4X	6L	140×152	14	≤204	14:1	4600	3325×1250×2000
400GF-C	400kW	450kW	QSK19-G13	6L	159×159	18.9	≤203	13.9:1	5000	3325×1250×2000
450GF-C	450kW	505kW	K19A-G8E	6L	159×159	18.9	≤203	13.9:1	5300	3570×1780×2145
500GF-C	500kW	550kW	K19A-G8A	6L	159×159	18.9	≤205	13.9:1	5500	3600×1915×2410
600GF-C	600kW	690kW	QSK38-G8	12V	159×159	37.8	≤213	14.5:1	8500	4245×1630×2350
640GF-C	640kW	700kW	KTA38-G2E	12V	159×159	37.8	≤213	14.5:1	8500	4245×1630×2350
720GF-C	720kW	800kW	KTA38-G5E	12V	159×159	37.8	≤213	14.5:1	8750	4275×1630×2350
800GF-C	800kW	880kW	KTA38-G7E	12V	159×159	37.8	≤202	13.9:1	9500	4445×1920×2355
900GF-C	900kW	990kW	KTA38-G9E	12V	159×159	37.8	≤202	13.9:1	9500	4445×1920×2355
1000GF-C	1000kW	1100kW	KTA50-G3E	16V	159×159	50.3	≤197	13.9:1	10500	4360×1920×2600
1100GF-C	1100kW	1200kW	KTA50-G7E	16V	159×159	50.3	≤197	13.9:1	10500	4360×1920×2600
1200GF-C	1200kW	1320kW	KTA50-G8E	16V	159×159	50.3	≤197	13.9:1	10500	4360×1920×2600
