| Basic Parameters | Unit | Parameters |
| Model |

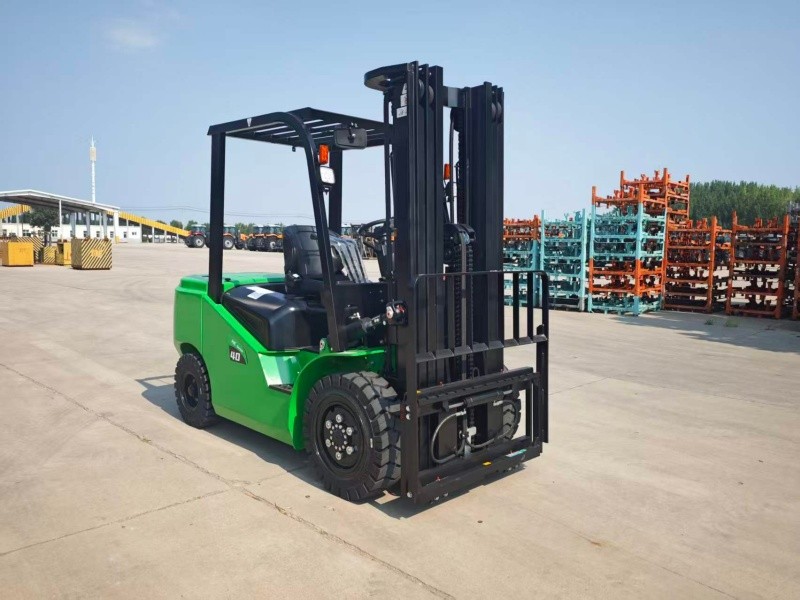

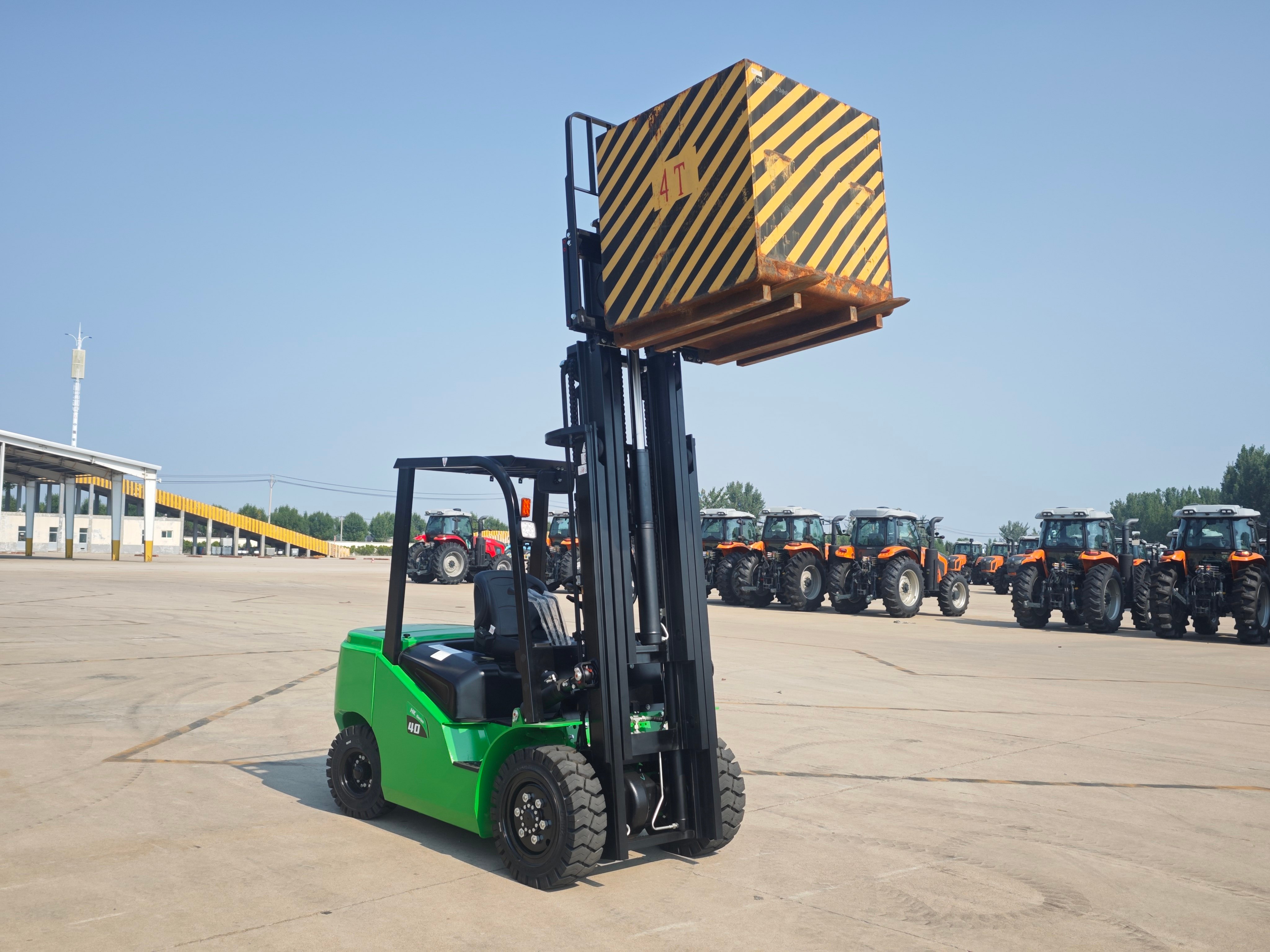

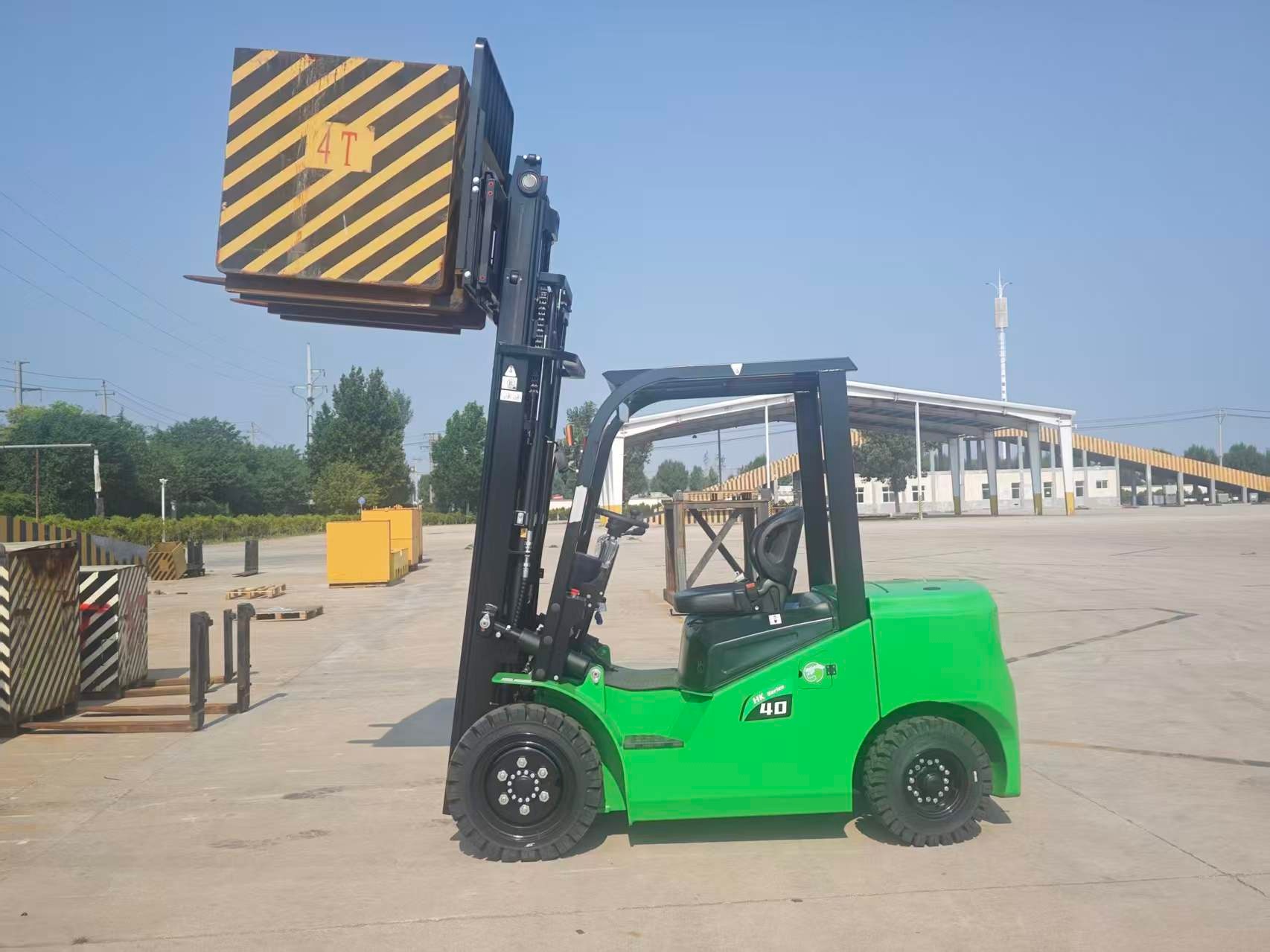

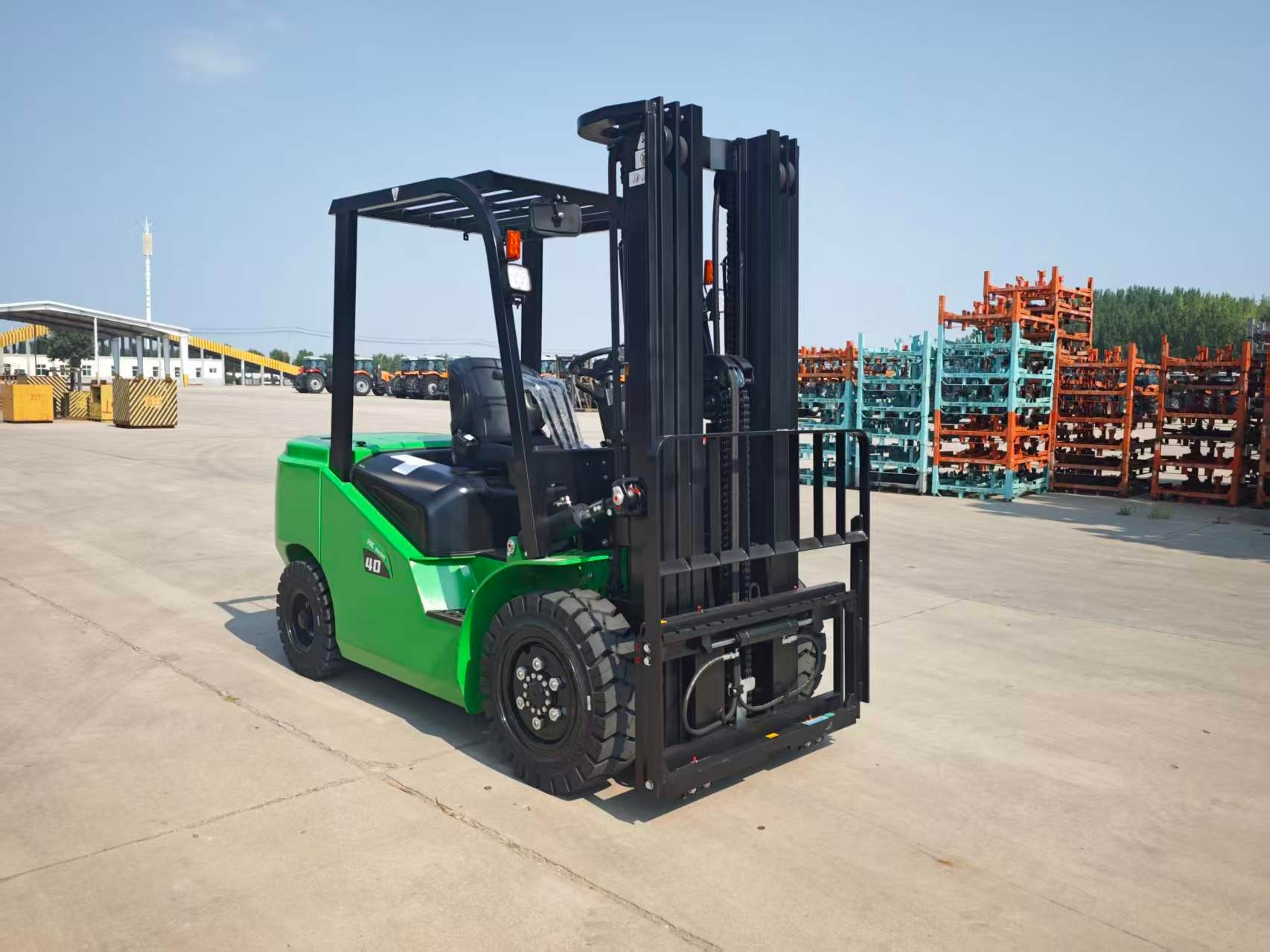

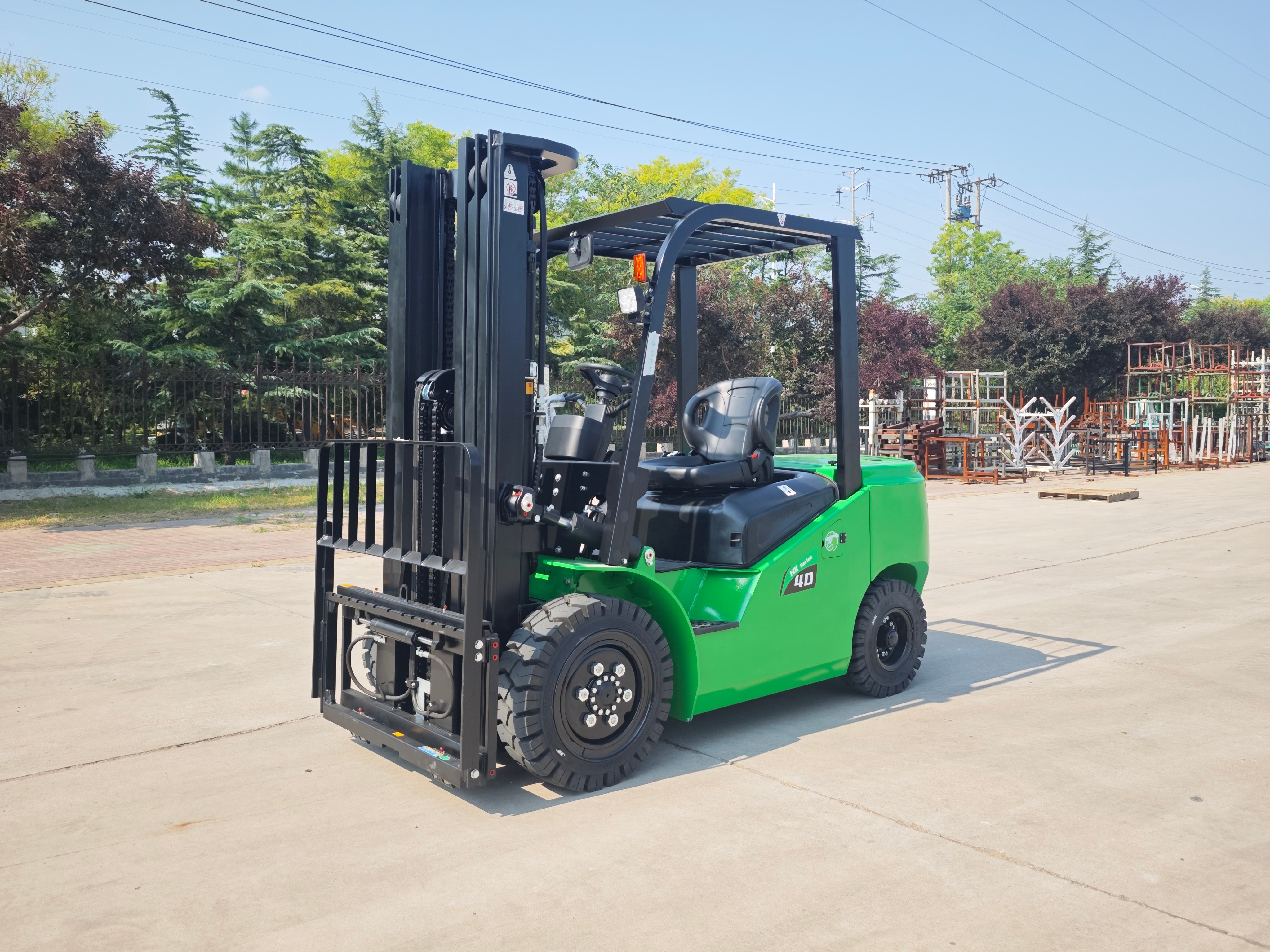

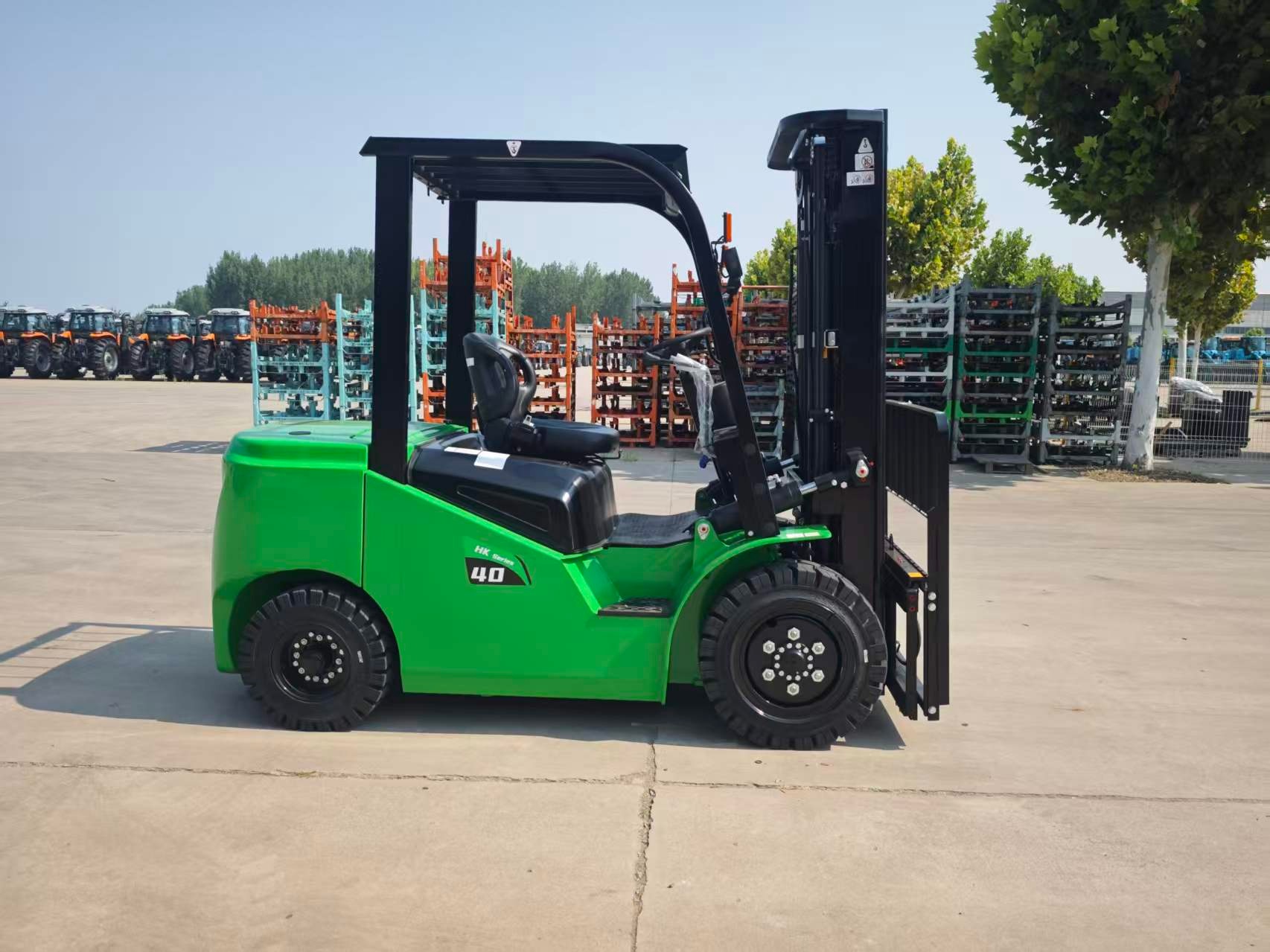

| CPD 4.0t |
| Configuration Code |
| / |
| Power Type |
| electric |
| Voltage Platform | V | 80 |
| Operation Mode |
| Vehicle |
| Performance Parameters | Unit | Parameters |
| Rated load capacity | kg | 4000 |
| Load center distance | mm | 500 |
| Front overhang | mm | 490 |
| Rear overhang | mm | 470 |
| Wheelbase | mm | 1750 |
| Service weight (with/without battery) | kg | 5000/4760 |
| Axle load, fully loaded (front/rear) | kg | 8487/513 |
| Axle load, unladen (front/rear) | kg | 3160/1840 |
| Structural dimensions | Unit | Parameters |
| Tire type |
| Pneumatic tire |
| Number of wheels (x = drive wheels) |
| 2x/2 |
| Front tire size |
| 250-15-16PR |
| Rear tire size |
| 6.50-10-10PR |
| Front wheel track | mm | 1000 |
| Rear wheel track | mm | 970 |
| Mast tilt (forward/backward) |
| 6/12 |
| Mast lowered height | mm | 2135 |
| Free lift | mm | 155 |
| Maximum lifting height | mm | 3000 |
| Maximum operating height | mm | 4240 |
| Overhead guard height | mm | 2155 |
| Truck length (to fork face) | mm | 2700 |
| Truck width | mm | 1240 |
| Fork dimensions (thickness × width × length) | mm | 1070×122×50 |
| Fork spread (outer edges) (min./max.) | mm | 250-1085 |
| Mast ground clearance (fully loaded) | mm | 125 |
| Minimum chassis ground clearance | mm | 140 |
| Minimum turning radius | mm | 2500 |
| Maximum travel speed (loaded/unloaded) | km/h | 15/16 |
| Maximum lifting speed (loaded/unloaded) | mm/s | 310/370 |
| Lowering speed (loaded/unloaded) | mm/s | 380/370 |
| Maximum drawbar pull (loaded) | N | 23000 |
| Gradeability (loaded/unloaded) | % | 18/25 |
| Other parameters | Unit | Parameters |
| Service brake (mechanical, electronic, hydraulic) |
| Hydraulic type |
| Parking brake (mechanical, electronic, hydraulic) |
| Mechanical |
| Traction motor rated power, S2 60-minute duty cycle | kW | 16AC |
| Oil pump motor rated power, S3 15-minute duty cycle | kW | 24AC |
| Motor type/protection class |
| AC Asynchronous / IP54 |
| Motor and Controller | Unit | Parameters |
| Battery type |
| Lithium battery |
| Standard battery voltage/capacity | V/Ah | 76.8/280 |
| Standard battery weight | kg | 240 |
| Battery heating method/protection rating |
| Low-temperature electric heating / IP54 |
| MCU motor controller type |
| MOSFET/AC |
| MCU motor controller model |
| ACM III 80C450 |
| Hydraulic system operating pressure | Mpa | 18.5 |
