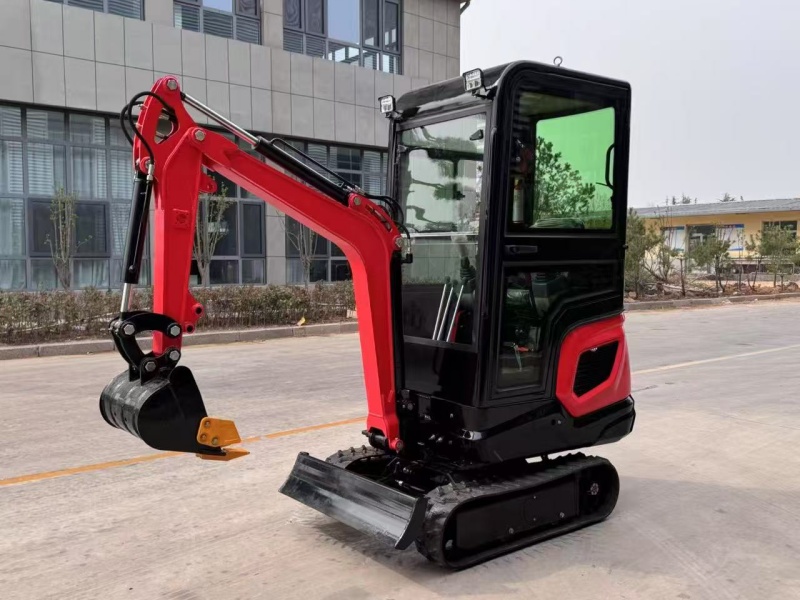

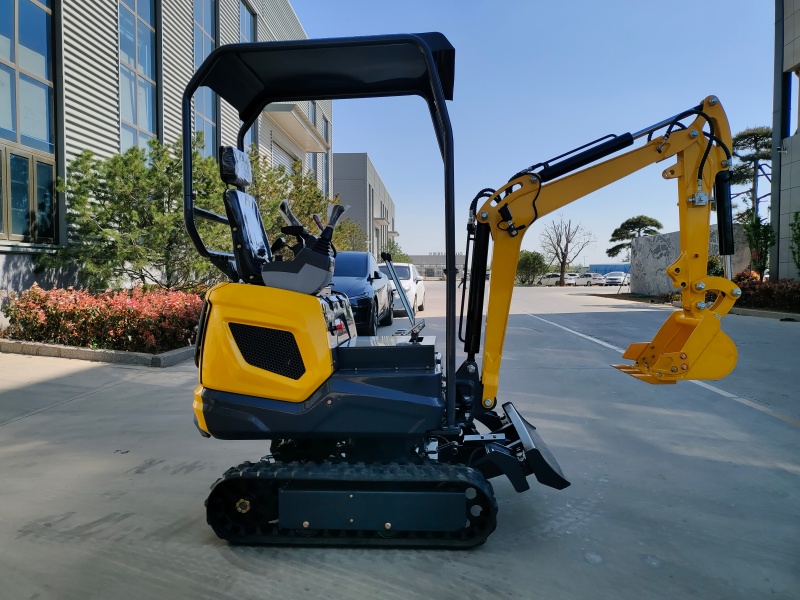

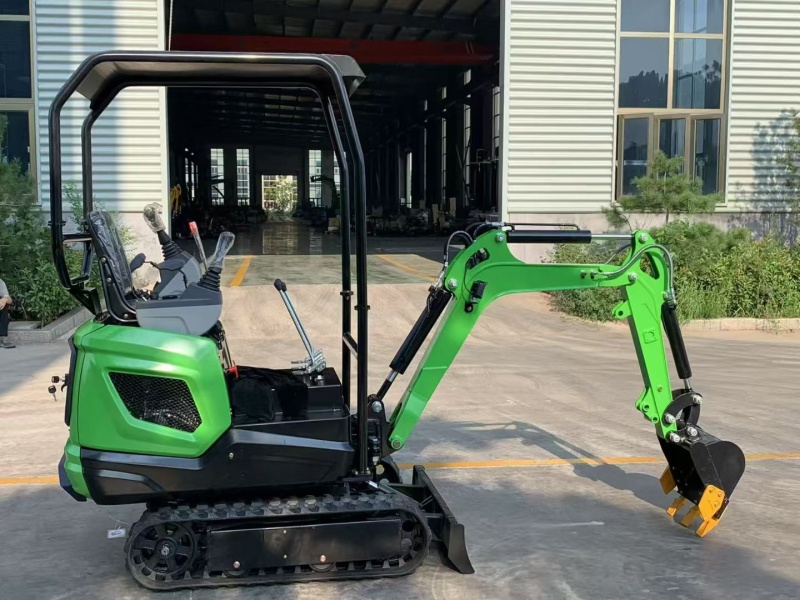

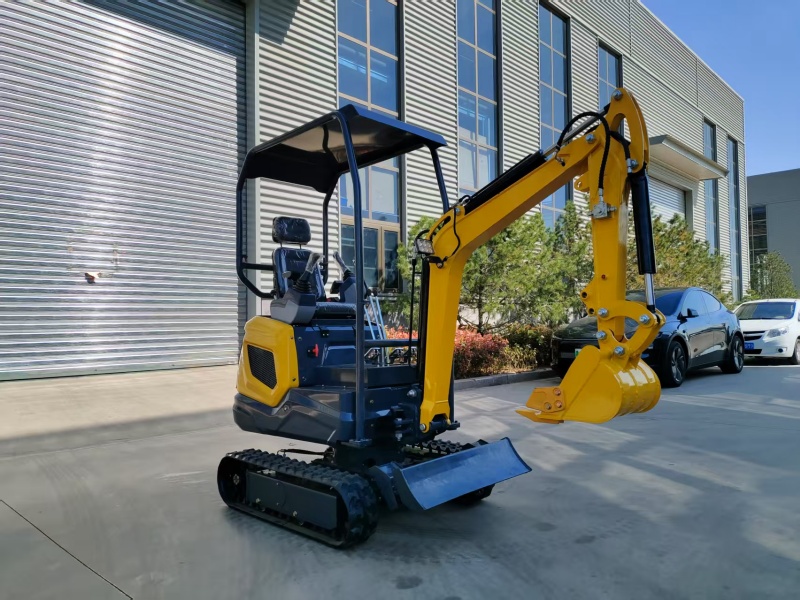

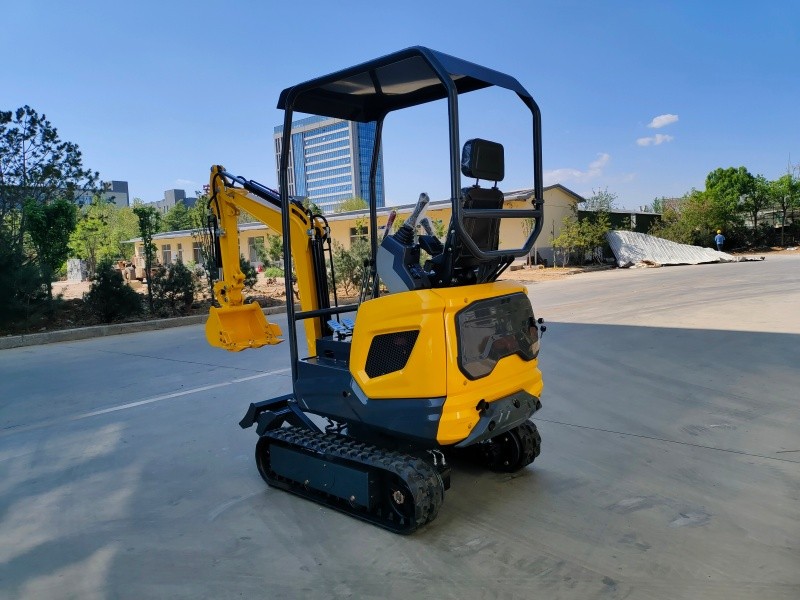

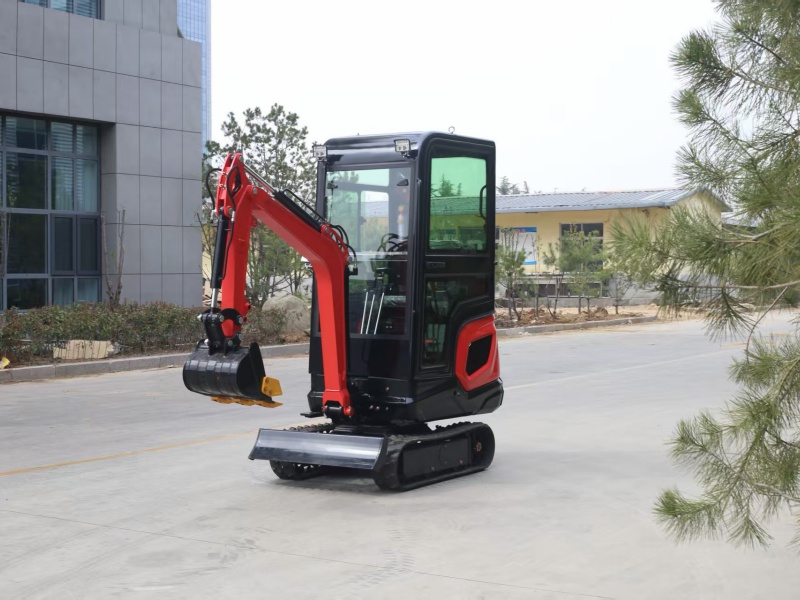

SL12 Mini Excavator

WhatsApp：+86 19853880668

Email：19853880668@gmail.com

Product Description

A compact, agile model equipped with a 0.018 m³ bucket and an 18 MPa hydraulic system. With a maximum digging depth of 1.44 meters and a swing speed of 9 rpm, it efficiently handles basic landscaping or light municipal maintenance tasks.

Machine Size	SL12
Overall Length(mm)	3184
Overall Width(mm)	935
Overall Height(mm)	2157
Track Width(mm)	180
Track Length(mm)	1235
Body Width(mm)	934
Specifications	Parameter
Bucket Capacity(m³)	0.018
Engine(kw)	KOOP 192 7.6kw
Machine Pressure(MPa)	18
Rotation Speed(r/h)	9r/h
Platform Ground Clearance(mm)	366
Minimum Ground Clearance(mm)	197
Fuel Tank Capacity(L)	4.89
Hydraulic Oil Tank Capacity(L)	12
Working Range	Parameter
Max. Digging Radius（mm)	2507
Max Digging Depth（mm）	1436
Max. Digging Height（mm）	2283
Max. Unloading Height（mm）	1698
Min. Swing Radius（mm）	1603
